Description

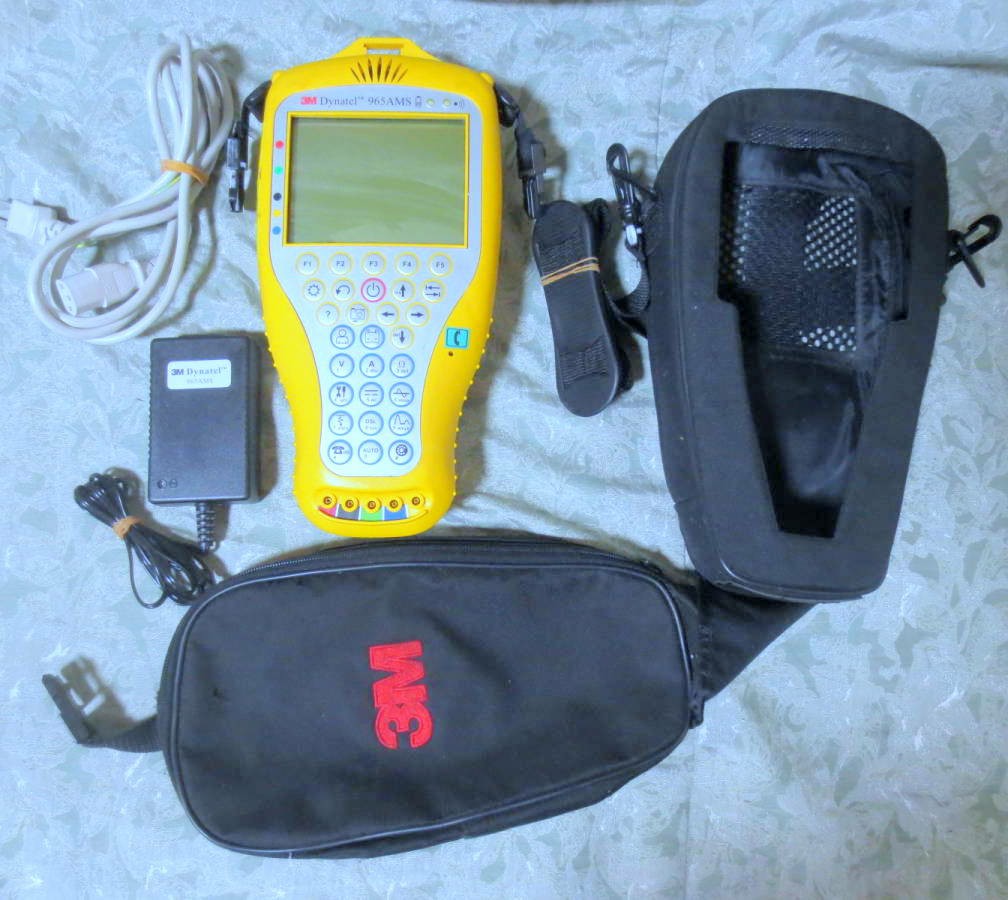

3M Dynatel 965AMS Lite

The 3M Dynatel 965AMS Lite is a versatile and high-performance Advanced Modular System designed for underground utility locating, fault detection, and cable analysis. Part of 3M Dynatel line, this modular system offers flexible and reliable solutions for utility contractors, engineers, and field technicians who require accurate diagnostics in both standard and challenging environments.

Featuring a lightweight and compact design, the 965AMS Lite provides easy portability while maintaining robust functionality. Its modular architecture allows users to customize and expand the system with optional modules for locating metallic cables, testing insulation integrity, and detecting faults in telecommunications, power, and CATV networks.

The system integrates advanced signal processing and filtering technology to deliver precise results even in noisy environments or complex underground networks. Its intuitive interface and configurable settings allow technicians to quickly adapt to various field scenarios, improving efficiency and reducing downtime.

Built with durability and reliability in mind, the 3M Dynatel 965AMS Lite is engineered to withstand harsh field conditions while maintaining high measurement accuracy. It is ideal for utility mapping, preventive maintenance, and fault-finding applications, providing an all-in-one solution for modern infrastructure management.

Specifiction

General & Physical

• Model: 3M Dynatel 965AMS Lite

• Type: Advanced Modular System handheld utility tester

• Weight: ~3.3 lbs (1.5 kg), lightweight and portable

• Dimensions: Approx. 11.5″ × 5.75″ × 3.25″ (29.2 × 14.6 × 8.3 cm)

• Display: 4.1″ × 3.1″, 320 × 240 pixel high-visibility LCD screen, sunlight readable

Power & Battery

• Battery: Rechargeable battery pack or alkaline batteries

• Typical Battery Life: ~9 hours with intermittent use

Environmental & Durability

• Drop Resistance: Survives 3 ft (1 m) drop onto concrete; up to 5 ft with soft case

• Vibration: Meets military-grade vibration standards

• Ingress Protection: IP65 (rain/dust) and IP67 (immersion up to 0.15 m)

• Emissions Compliance: FCC Part 15 Class A and EN55022

• Operating Range: Configurable units display in feet or meters, suitable for outdoor use

Measurement Capabilities

• Voltage & Current testing

• Resistance Fault Location (RFL)

• POTS and basic copper loop analysis

• Supports optional TDR, broadband, and signal modules for extended functionality

Features & Options

• Modular design allows field upgrades with swappable modules

• Flexible test configurations: VOM, RFL, POTS, optional TDR

• Handheld and rugged for outdoor, aerial, and underground use

• Stores up to 100 results across test types

The 3M Dynatel 965AMS Lite is a rugged, portable system ideal for underground utility locating, fault finding, and cable testing. Its modular architecture enables customization for expanded testing needs while ensuring durability and high-accuracy measurements in demanding field conditions.
