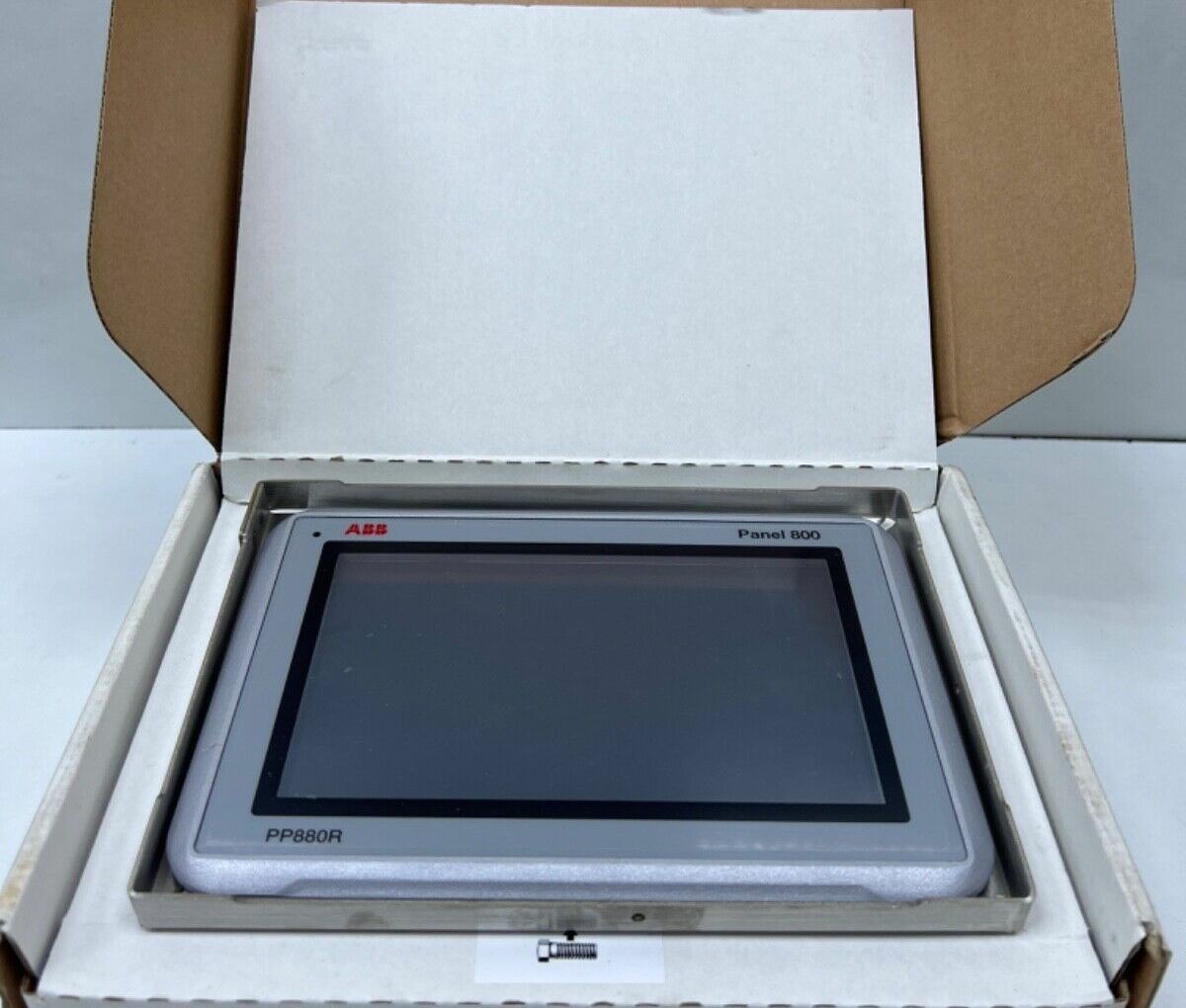

ABB PP880R Touch Panel (3BSE069295R1)

The ABB PP880R is a high-performance industrial touch panel from the Panel 800 series, designed for demanding process automation and operator interface applications. This rugged panel provides a compact, yet powerful, interface for monitoring and controlling automated systems in diverse industrial environments.

It features a 7-inch TFT color LCD display with a resolution of 800 × 480 pixels, offering clear visualization of process data, alarms, trends, and dashboards. The resistive touch interface supports up to 1 million touches, allowing reliable operation even with work gloves, ensuring precise control in harsh conditions.

The panel is housed in a durable gray powder-coated aluminum enclosure with a polyester front foil for resistance against dust, moisture, and mechanical stress. It also supports marine-optimized dimming, enabling low-light operation to reduce eye strain in shipboard or low-visibility settings.

Internally, the PP880R is powered by a 1.0 GHz Intel Atom processor, paired with 1 GB of main memory and 3.5 GB of application storage, enabling fast, smooth operation of complex HMI applications. A real-time clock ensures accurate timestamping for system events and logs.

Connectivity & Expansion

• Networking: 1× 10/100 Base-T and 1× 10/100/1000 Base-T Ethernet interfaces for connection to controllers and plant networks.

• USB Ports: 3× USB Host 2.0 ports for peripherals such as keyboards, scanners, or USB storage.

• Serial Ports: 1× RS232 and 1× RS422/485 isolated serial ports for legacy devices and field instruments.

• External Storage: SD card slot for program backups, firmware upgrades, and application transfer.

Mechanical & Environmental

• Panel Cut-out: Standard panel mounting dimensions of 188 × 127 mm.

• Dimensions & Weight: 204 × 143 × 73 mm, approximately 1.4 kg.

• Power: 12–32 V DC input, compatible with standard plant DC systems.

• Operating Conditions: Designed for industrial ambient ranges with robust performance across temperature, humidity, and vibration.

Applications

• Process control and operator supervision

• Batch recipe management

• Alarm and event visualization

• Data trending and KPI displays

• Machine HMI in factory automation

Engineering & Configuration

The PP880R is configured using ABB Panel Builder 800 software, offering templates, graphics libraries, and multi-language support for easy programming, simulation, and deployment in industrial systems.
