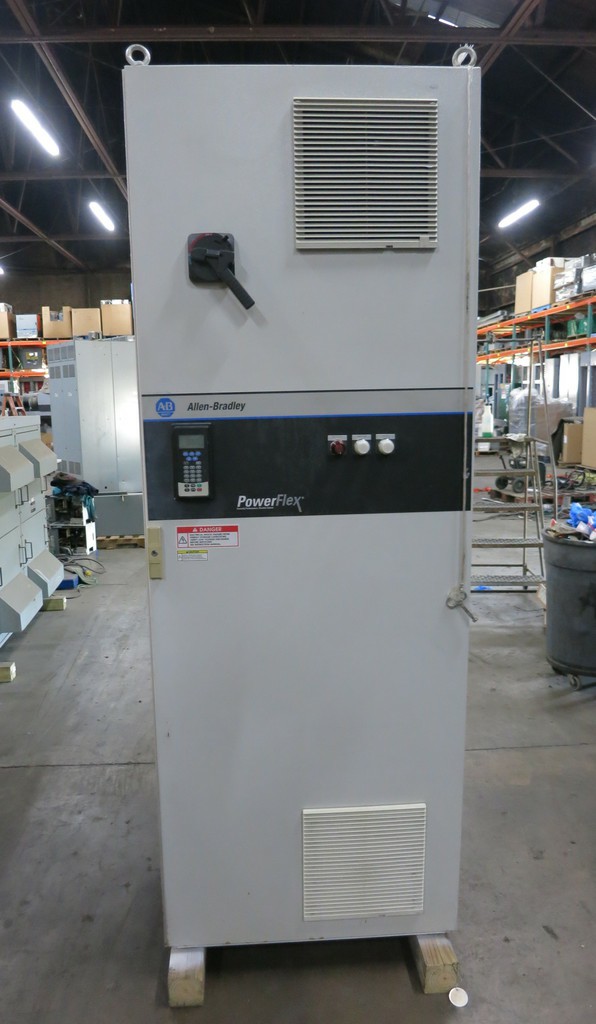

Allen-Bradley 20BD125A0ANNAND0

The Allen-Bradley 20BD125A0ANNAND0 PowerFlex 700 Variable Speed (VS) Drive is a high-performance AC drive designed for precise motor control in industrial automation applications. With a rated power of 100 HP, this drive provides robust performance, energy efficiency, and flexibility for a wide range of processes, including pumps, fans, conveyors, mixers, and other heavy-duty machinery.

Part of the renowned PowerFlex 700 series by Rockwell Automation, the 20BD125A0ANNAND0 integrates advanced features such as dynamic torque control, multi-speed settings, and optimized energy management to reduce operational costs. It supports EtherNet/IP and other standard industrial communication protocols for seamless integration into automated control systems, enabling centralized monitoring, diagnostics, and real-time process adjustments.

The drive features a compact and modular design for straightforward installation and maintenance, along with built-in safety functions such as overcurrent, overvoltage, and motor thermal protection. Its adaptive control algorithms ensure smooth acceleration and deceleration, reducing mechanical stress on connected equipment and improving overall system reliability.

Engineered for demanding industrial environments, the Allen-Bradley 20BD125A0ANNAND0 PowerFlex 700 VS Drive combines precision, durability, and scalability, making it ideal for engineers and automation professionals seeking high-performance variable speed control solutions for critical applications.

Specifications

General

• Model: 20BD125A0ANNAND0

• Series: PowerFlex 700

• Product Type: Variable Speed (VS) AC Drive

• Brand: Allen-Bradley (Rockwell Automation)

• Application: Industrial automation, pumps, fans, conveyors, mixers, heavy-duty machinery

• Mounting: Cabinet / Panel installation

• Protection Class: IP20 (indoor use)

Electrical Specifications

• Input Voltage: 480 VAC ±10%, 3-phase, 50/60 Hz

• Rated Output Power: 100 HP (≈75 kW)

• Rated Output Current: 125 A

• Output Frequency Range: 0–600 Hz

• Control Supply Voltage: 24 VDC for logic and communication modules

• Communication: EtherNet/IP, DeviceNet, optional Modbus, or other industrial networks

Performance Features

• Variable speed control for precise motor operation

• Dynamic torque and speed regulation

• Multi-speed settings and programmable profiles

• Adaptive energy optimization for reduced operational costs

• Built-in diagnostics and monitoring for predictive maintenance

Mechanical & Environmental

• Dimensions (approx.): 560 mm × 305 mm × 300 mm (L × W × H)

• Weight: ~58 kg

• Operating Temperature: 0 °C – 50 °C

• Storage Temperature: –40 °C – 70 °C

• Cooling: Forced-air (built-in fans)

Safety & Protection

• Overcurrent, overvoltage, and short-circuit protection

• Motor thermal protection and adaptive load monitoring

• Safe Torque Off (STO) compatible with safety modules

• Fault diagnostics with LED/status indicators

Additional Features

• Compact and modular design for easy installation and scalability

• Compatible with Rockwell Automation Studio 5000 for programming and monitoring

• Smooth acceleration and deceleration to reduce mechanical stress

• Designed for integration with automated control systems in industrial environments
