Description

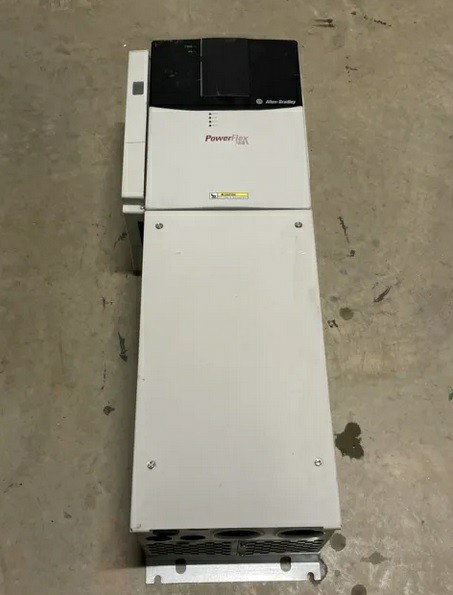

Allen-Bradley PowerFlex 700S
The PowerFlex 20DD077A0ENNANANE 60HP is a high-performance Variable Speed Drive (VSD) engineered to deliver advanced motor control, precision speed regulation, and exceptional reliability in demanding industrial environments. As part of the PowerFlex 700S series, this drive is designed for applications requiring accurate torque control, dynamic response, and seamless integration into modern automation systems.
Built for 60HP motors, this unit provides superior vector control capabilities, enabling precise speed and torque management across a wide operating range. Its advanced control architecture supports high-speed processing and flexible configuration, making it ideal for complex applications such as conveyors, extruders, mixers, compressors, pumps, and heavy-duty production lines.
The 20DD077A0ENNANANE model is engineered to support sophisticated industrial control systems. It integrates efficiently with PLC-based automation platforms and supports advanced programming options, allowing users to customize motor performance parameters according to specific process requirements. This ensures optimized productivity, reduced energy consumption, and improved operational consistency.
Designed with industrial durability in mind, the PowerFlex 700S features robust construction, reliable thermal management, and protection mechanisms against overload, overvoltage, undervoltage, and short circuits. These protections enhance equipment lifespan and minimize downtime in critical operations.
With its flexible configuration, high-speed communication capability, and precise motor control performance, the PowerFlex 700S 60HP drive is a trusted solution for manufacturers and industrial facilities seeking efficient motor control, process optimization, and long-term reliability.
Key Advantages:
-
Advanced vector control for precise torque and speed regulation
-
60HP motor compatibility for medium to heavy-duty applications
-
Seamless integration with industrial automation systems
-
High reliability and industrial-grade protection features
-
Energy-efficient operation with optimized motor performance
The PowerFlex 20DD077A0ENNANANE 60HP stands as a powerful and dependable drive solution for industries requiring accuracy, flexibility, and consistent performance in motor control systems.
Allen-Bradley PowerFlex 700S
Model: 20DD077A0ENNANANE – 60HP
Technical Specifications
Electrical Ratings
-
Rated Power: 60 HP (Normal Duty)
-
Input Voltage: 480V AC, 3-Phase
-
Input Frequency: 50/60 Hz
-
Rated Output Current: 77 A (Normal Duty)
-
Input Current: Approx. 84.5 A
-
Input Power Rating: Approx. 60 kVA
-
Output Frequency Range: 0 – 400 Hz
-
Nominal DC Bus Voltage: ~650 VDC
-
Carrier Frequency: 4 kHz (adjustable up to 10 kHz)
-
Power Factor: ~0.98
Control Features
-
Control Method: PWM with Field-Oriented (Vector) Control capability
-
Speed Regulation (Sensorless): ±0.1% of base speed
-
Overload Capacity: Up to 200% current limit (programmable)
-
Stop Modes: Coast, Ramp, Current Limit, and programmable modes
I/O Configuration
-
Digital Inputs: 6
-
Digital Outputs: 2
-
Analog Inputs: 3
-
Analog Outputs: 2
-
Communication: Expansion slot available (optional communication modules)
Protection Features
-
Motor overload protection (Class 10)
-
Overvoltage / Undervoltage protection
-
Overcurrent protection
-
Short circuit protection
-
Ground fault protection
-
Overtemperature protection
Mechanical & Physical
-
Enclosure Rating: IP20 / NEMA Type 1
-
Height: Approx. 758 mm
-
Width: Approx. 252 mm
-
Depth: Approx. 202 mm
-
Weight: Approx. 24.5 kg
Environmental Conditions
-
Operating Temperature: Up to 50°C (without derating)
-
Storage Temperature: -40°C to +70°C
-
Humidity: 5–95% non-condensing
-
Maximum Altitude: 1000 m without derating
This specification makes the PowerFlex 700S 60HP suitable for medium to heavy industrial applications requiring high precision speed and torque control.
