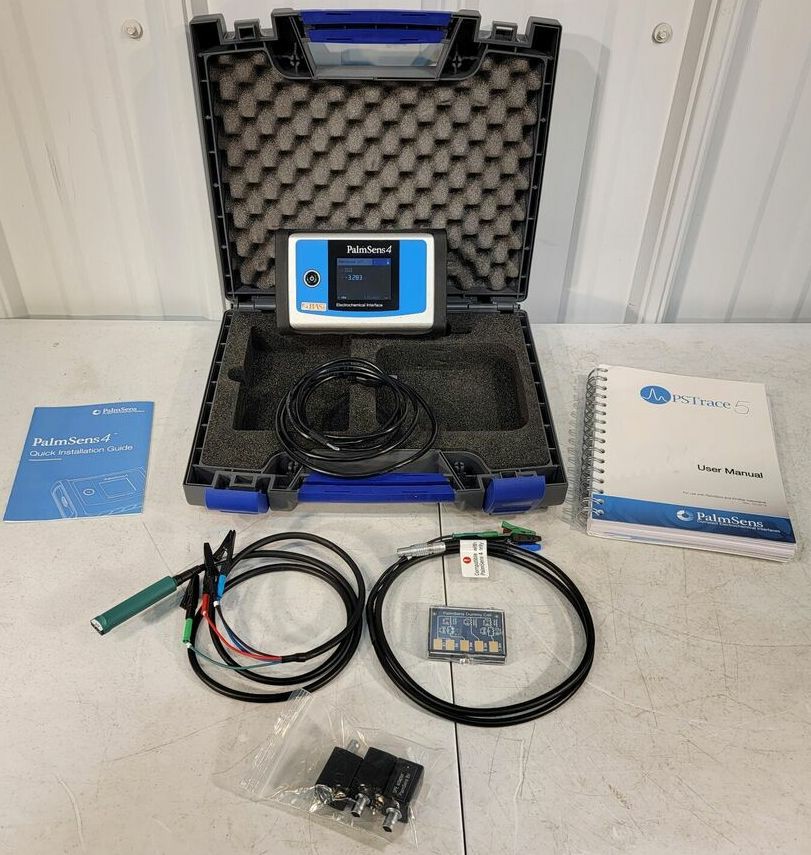

BASi PalmSens4 Electrochemical Interface

The BASi PalmSens4 Electrochemical Interface is a compact, versatile, and high-performance potentiostat/galvanostat designed for advanced electrochemical research and analysis. Engineered for both laboratory and field applications, the PalmSens4 offers precise control and measurement capabilities across a wide range of electrochemical techniques, including cyclic voltammetry, square wave voltammetry, chronoamperometry, and electrochemical impedance spectroscopy (EIS).

Featuring a user-friendly interface and seamless integration with PSTrace software, the PalmSens4 provides intuitive data acquisition, visualization, and analysis. Its robust design ensures stability and reproducibility in both research and industrial environments, making it suitable for applications in electrochemistry, sensor development, corrosion studies, battery testing, environmental monitoring, and bioelectrochemical research.

The PalmSens4 supports high-speed measurements with excellent current and voltage resolution, allowing for the detection of micro- and nano-scale electrochemical signals. Compact and portable, it can operate via USB connection to a PC or laptop, or as a standalone system with optional wireless connectivity. Its modular design also allows for easy expansion with additional modules, enabling multi-channel measurements and advanced experimental setups.

With safety features such as overcurrent and overvoltage protection, the BASi PalmSens4 ensures reliable operation and longevity of the device. Its combination of precision, flexibility, and portability makes it an ideal solution for researchers, engineers, and educators seeking high-quality electrochemical instrumentation.

Specifications

General Specifications:

• Device Type: Potentiostat/Galvanostat/EIS Analyzer

• Channels: Single-channel (expandable with multi-channel modules)

• Measurement Modes: Potentiostatic, Galvanostatic, ZRA, Electrochemical Impedance Spectroscopy (EIS)

• Voltage Range: ±12 V (compliance voltage)

• Current Range: ±10 A to ±1 nA (depending on configuration and accessories)

• Current Resolution: 0.1 pA – 10 fA (high sensitivity mode)

• Voltage Resolution: 100 nV

• Data Acquisition Rate: Up to 200 kS/s (samples per second)

• Accuracy: ±0.1% of applied potential / ±0.2% of measured current

• Temperature Range: 0 – 40 °C (operating)

Electrochemical Techniques Supported:

• Cyclic Voltammetry (CV)

• Square Wave Voltammetry (SWV)

• Differential Pulse Voltammetry (DPV)

• Chronoamperometry (CA)

• Chronopotentiometry (CP)

• Electrochemical Impedance Spectroscopy (EIS)

• Multi-step techniques (customizable sequences)

Connectivity & Interface:

• Connection: USB 2.0 / USB-C for PC or laptop

• Software: PSTrace software for Windows (data acquisition, analysis, and visualization)

• Optional: Wireless Bluetooth module for portable use

• Data Storage: PC/laptop-based; optional SD card expansion

Physical & Environmental:

• Dimensions: 170 × 110 × 40 mm (approx.)

• Weight: ~0.5 kg

• Power Supply: USB powered or external 12 V adapter

• Safety: Overcurrent and overvoltage protection

• Enclosure: Robust, laboratory-grade housing for portable or bench use

Additional Features:

• Modular system for multi-channel expansion

• High-speed sampling for fast electrochemical processes

• Compatible with a wide range of electrodes and electrochemical cells

• Low-noise design for accurate micro- and nano-scale measurements

• Suitable for laboratory, educational, and field research applications
