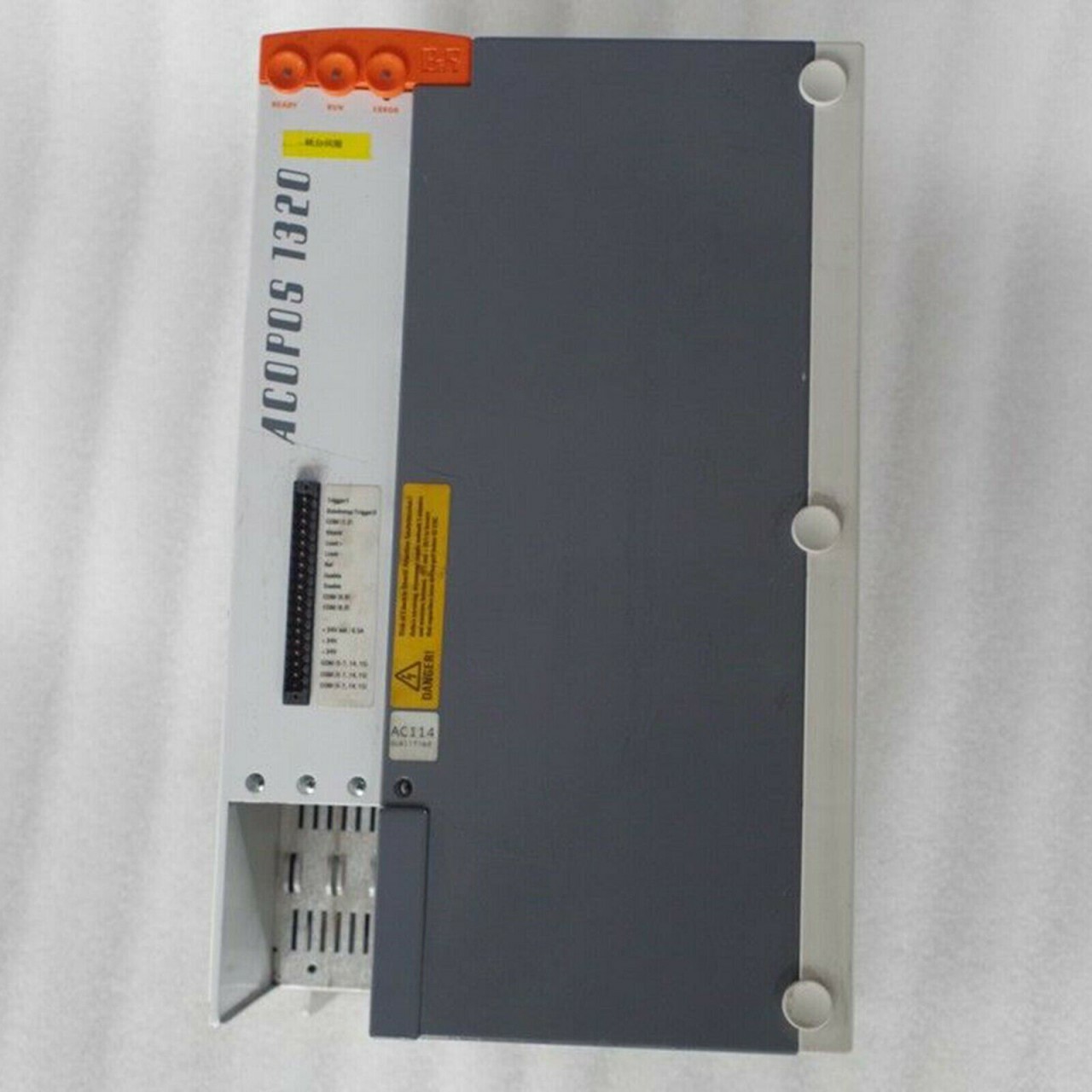

BR Acopos 1320 8V1320.00.2 Servo Drive

The BR Acopos 1320 8V1320.00‑2 Servo Drive is a high‑performance industrial motion control amplifier engineered for demanding automation applications that require precise, reliable servo control. Part of the renowned ACOPOS 1320 series from B&R, this robust servo drive is designed to deliver exceptional power and responsiveness in a compact, modular form factor.

Built for use with three‑phase 400–480 VAC mains systems, the 8V1320.00‑2 model provides a continuous output current of 34 A and a maximum power rating of 16 kW, making it suitable for controlling medium‑to‑high‑power servo motors in industrial settings such as robotics, packaging machinery, material handling systems, and precision manufacturing equipment.

The drive incorporates an integrated line filter to reduce electrical noise and improve EMC compliance, as well as an integrated braking resistor and a DC bus power supply unit to manage energy during rapid deceleration and regenerative conditions. Its modular mechanical design with plug‑in connectors simplifies installation and maintenance, while the electronic safe restart interlock enhances operational safety by preventing unintended restarts after power interruptions or emergency stops.

Designed for flexibility and durability, the ACOPOS 1320 series supports a range of optional modules and accessories, enabling expanded communication interfaces and customization to fit specific automation architectures. The 8V1320.00‑2 drive combines rugged industrial reliability with smooth, high‑precision control, making it an excellent solution for modern automated systems requiring consistent torque, speed, and positional accuracy.

Specifications

General

• Model: 8V1320.00‑2 (ACOPOS 1320 series)

• Product Type: AC servo drive / motion control amplifier

• Brand: B&R

• Certifications: CE, cULus (UL), KC

• Protection Class: IP20 (indoor use)

• Mounting: Cabinet installation (vertical/horizontal orientation)

• Modular design with plug‑in connectors

Electrical Specifications

• Input Voltage: 3 × 400–480 VAC ±10%, 50/60 Hz

• Installed Load (Max): ~30 kVA

• Rated Continuous Output Current: 34 A

• Rated Power Output: 16 kW

• Starting Current (400 VAC): ~13 A

• DC Bus Capacitance: ~1645 µF

• Control Supply Voltage: 24 VDC (+25% / −20%)

Integrated Features

• Integrated line filter for EMC compliance

• Integrated braking resistor with external brake support

• DC bus power supply unit included

• Electronic safe restart inhibit (prevents unintended restarts after power loss)

Mechanical & Environmental

• Slots for Plug‑In Modules: 4 (for expansion and optional interfaces)

• Dimensions (approx.): 380 mm × 205 mm × 240 mm (L × W × H)

• Weight: 10.6–11.7 kg

• Operating Temperature: 5 °C – 55 °C

• Switch‑On Interval: > 10 s between mains application events

Safety & Protection

• Overload and short‑circuit protection

• Ground fault protection

• Electronic safe restart inhibit feature enhances system safety
