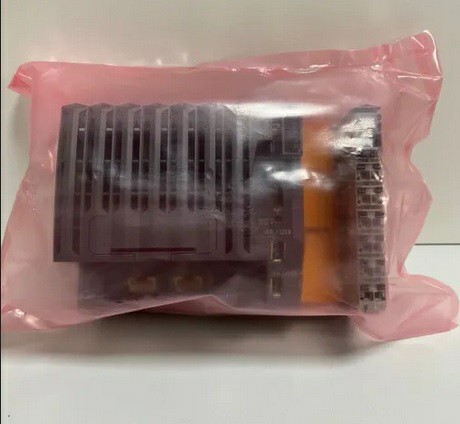

B&R X20CP1486 CPU PLC Module

The B&R X20CP1486 CPU PLC Module is a high-performance central processing unit engineered for the B&R X20 modular automation platform. Designed to meet the demands of modern industrial control systems, this CPU module delivers powerful processing capabilities, fast response times, and flexible communication options for complex machine automation and process control applications.

Powered by a high-performance Intel x86-based processor, the X20CP1486 ensures rapid program execution and reliable real-time control. Its advanced architecture supports multitasking operations, enabling seamless coordination between motion control, logic processing, data handling, and communication tasks. This makes it suitable for applications such as packaging machines, material handling systems, robotics, production lines, and other high-speed automation environments.

The module features integrated communication interfaces including Ethernet, POWERLINK, USB, and X2X Link, allowing easy connectivity to field devices, remote I/O modules, HMIs, and higher-level supervisory systems. This flexible networking capability ensures efficient data exchange and scalable system architecture.

Designed with a compact and fanless construction, the X20CP1486 is ideal for space-limited control cabinets while maintaining high reliability in industrial environments. The robust industrial-grade design supports continuous operation and long service life, even in demanding factory conditions.

With expandable memory options and support for industrial storage media, this PLC CPU module provides ample capacity for large automation projects and complex program requirements. Its compatibility with the B&R X20 system allows seamless integration with a wide range of digital, analog, motion, and specialty modules.

The B&R X20CP1486 CPU PLC Module is an excellent solution for manufacturers seeking high performance, reliability, and scalable automation control within a compact and modular platform.

Specification

General

• Model: B&R X20CP1486

• Product Type: CPU Module / PLC Controller

• Series: X20 Modular Automation System

• Application: Industrial automation, machine control, process control

Processor

• CPU Type: High-performance Intel x86-based processor

• Architecture: 32-bit/64-bit capable processing (depending on configuration)

• Execution Speed: Fast instruction processing for real-time applications

• Memory: Onboard RAM for program execution

• Expandable Storage: Support for external storage (e.g., CompactFlash or similar industrial media)

Communications & Interfaces

• Ethernet: Integrated Ethernet port for system communication and programming

• POWERLINK: Real-time industrial Ethernet support

• X2X Link: High-speed communication to other B&R modules

• USB Port: For local programming and data transfer

• Fieldbus Support: Compatible with fieldbus networks via optional modules

Control & Functionality

• Programmable: Supports standard PLC programming languages

• Multitasking: Handles multiple control tasks concurrently

• Real-Time Capability: Deterministic control for precise machine operation

• Integration: Easy integration with I/O, motion, and specialty modules in the X20 system

• Expandability: Compatible with analog, digital, motion, and specialty modules

Electrical

• Power Supply: Supplied through X20 backplane

• Operating Voltage: Standard industrial PLC voltage (per X20 system specification)

• Power Consumption: Low power design (varies by load and configuration)

Mechanical / Environmental

• Form Factor: Compact module for DIN rail or panel mounting

• Cooling: Fanless, convection-cooled design

• Protection Rating: IP20 (standard industrial protection)

• Operating Temperature: Typical industrial range

• Storage Temperature: Industrial storage range

• Humidity: Industrial humidity tolerance (non-condensing)

• Vibration / Shock: Designed for industrial environments

Standards & Compliance

• Industrial Safety: Meets PLC controller safety standards

• EMC Compliance: Suitable for industrial electromagnetic environments

• Environmental Standards: Designed to operate reliably in harsh factory conditions
