Description

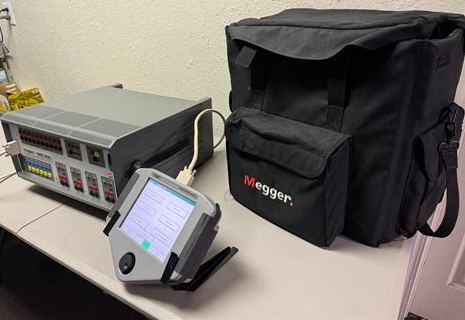

The Megger MPRT 8430 is a comprehensive microprocessor‑based relay test set designed for accurate testing, calibration, and verification of protective relays and trip systems in electrical power networks. Built for utilities, industrial facilities, and maintenance teams, the MPRT 8430 combines versatile test capabilities with robust performance to support a wide range of relay types—including electromechanical, solid‑state, and digital protection relays for overcurrent, differential, distance, and directional functions.

Featuring a high‑power output and flexible source configuration, the MPRT 8430 can generate three‑phase AC and DC test signals with controlled magnitude, phase angle, and frequency to simulate realistic system conditions. This enables precise evaluation of relay operating thresholds, timing accuracy, pickups, drops, and coordination performance. The set’s integrated touchscreen display and intuitive user interface simplify the creation, execution, and documentation of test sequences, while internal memory and customizable test profiles help streamline repetitive tasks and enhance consistency.

The test set supports bidirectional current injection and offers extensive timing and measurement functions, including event capture and waveform display, for comprehensive analysis of relay responses. Connectivity options such as USB and Ethernet facilitate report generation and data transfer to external systems for record keeping and quality assurance. Ruggedly constructed for field and workshop use, the Megger MPRT 8430 is a reliable solution for protective relay commissioning, routine maintenance, and diagnostic testing in substations, industrial plants, and power distribution networks.
