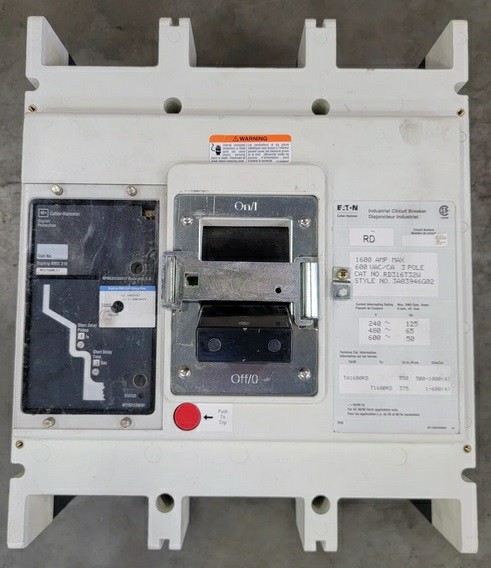

The Cutler Hammer RD316T32W 1600A molded case circuit breaker is a high-capacity power protection device designed for demanding industrial and commercial electrical distribution systems. Manufactured by Eaton under the trusted Cutler-Hammer product line, this breaker belongs to the Series C family and features a robust R-frame construction engineered for reliability, durability, and long service life in heavy-duty environments.

Rated at 1600 amperes with a maximum operating voltage of 600 VAC, the RD316T32W provides dependable circuit protection against overloads and short circuits. It incorporates the advanced Digitrip RMS 310 electronic trip unit with LSI (Long-time, Short-time, Instantaneous) protection functions, allowing precise adjustment and coordination with upstream and downstream protection devices. This level of flexibility makes it suitable for critical applications such as switchboards, panelboards, motor control centers, and large power distribution networks.

The breaker features a three-pole configuration and high interrupting capacity, typically rated up to 65 kA at 480 VAC and 50 kA at 600 VAC, ensuring reliable fault clearing capability under severe electrical conditions. Its bolt-on mounting design supports secure installation, while the compact yet rugged housing helps simplify integration into existing systems without sacrificing performance.

Designed to meet stringent industrial standards and certifications, the Cutler Hammer RD316T32W is an excellent solution for facilities requiring dependable high-amperage protection, operational safety, and long-term electrical system stability.
