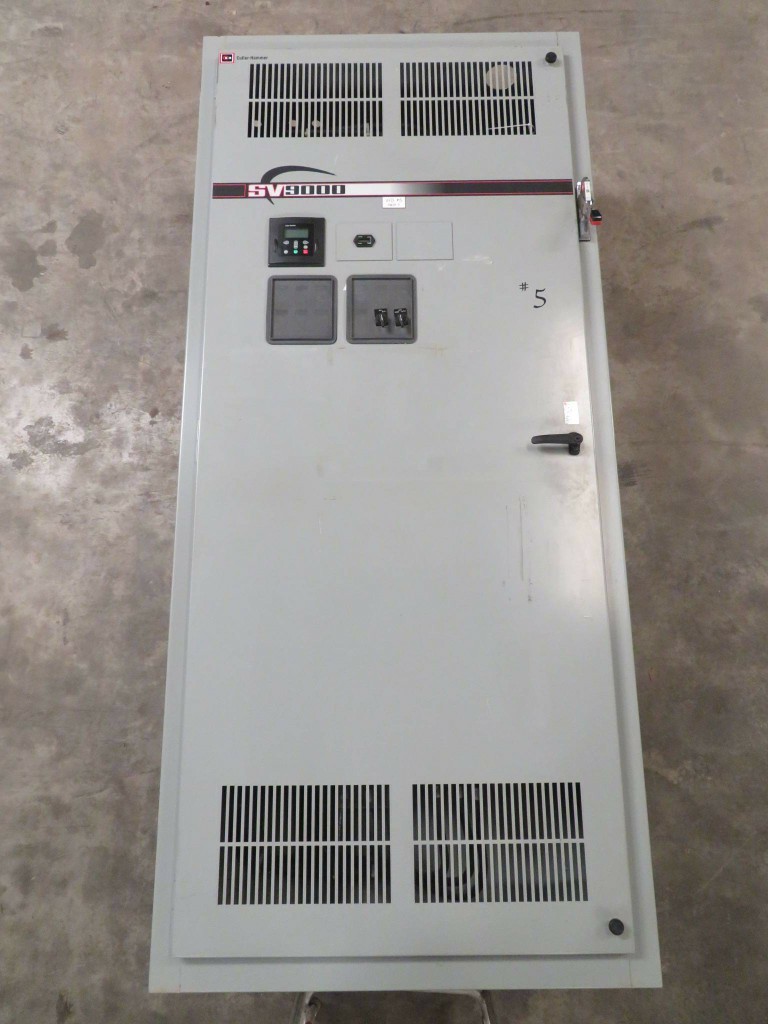

Eaton SV9175AN.5M0A00 200 HP AC Variable Speed Drive

The Eaton SV9175AN.5M0A00 200 HP is a high-capacity AC Variable Speed Drive (VSD) engineered to deliver reliable and efficient motor control in demanding industrial environments. Designed for large-scale applications, this 200 horsepower (approximately 150 kW) drive provides precise speed regulation, consistent torque performance, and enhanced energy optimization for heavy-duty motor systems.

Built to handle rigorous operational demands, the SV9175AN.5M0A00 ensures smooth acceleration and deceleration, minimizing mechanical stress on connected equipment. Its advanced motor control technology enables stable operation under fluctuating loads, making it ideal for pumps, fans, compressors, conveyors, mixers, crushers, and other high-power industrial machinery.

This drive is equipped with comprehensive protection features including overload, overcurrent, overvoltage, undervoltage, short circuit, and thermal protection. These built-in safeguards help extend motor life, reduce unplanned downtime, and improve overall system reliability.

The Eaton SV9175AN.5M0A00 also supports flexible parameter configuration, allowing operators to fine-tune performance according to specific process requirements. Its compatibility with industrial automation systems enables seamless integration with PLC and SCADA platforms for real-time monitoring and control.

With robust construction and industrial-grade components, this 200 HP AC drive is designed for continuous operation in harsh industrial settings. It offers improved operational efficiency, lower energy consumption, and optimized process control—making it a dependable solution for modern industrial facilities.

The Eaton SV9175AN.5M0A00 is an excellent choice for businesses seeking a powerful, energy-efficient, and durable variable speed drive capable of supporting critical high-horsepower applications.

Key Features

• 200 HP (≈150 kW) High Power Capacity – Designed for large industrial motors and heavy-duty applications.

• Advanced Variable Speed Control – Precise speed and torque regulation for optimized process performance.

• Smooth Acceleration & Deceleration – Reduces mechanical stress and extends equipment lifespan.

• High Energy Efficiency – Optimizes motor performance to lower energy consumption and operating costs.

• Robust Industrial Design – Built for continuous operation in demanding industrial environments.

• Comprehensive Motor Protection – Includes overload, overcurrent, overvoltage, undervoltage, short circuit, and thermal protection.

• Flexible Parameter Configuration – Adjustable settings to meet diverse process requirements.

• Automation System Integration – Compatible with PLC and industrial control networks for seamless monitoring and control.

• Stable Operation Under Load Fluctuation – Maintains consistent torque and performance in variable load conditions.

• Reduced Downtime – Enhanced reliability and protective features help minimize unexpected shutdowns.

Specification

General

• Model: Eaton SV9175AN.5M0A00

• Product Type: AC Variable Speed Drive (VSD)

• Rated Power: 200 HP (≈ 150 kW)

• Application: Industrial motor speed and torque control

Electrical

• Input Voltage: 3-Phase AC

• Nominal Voltage Range: Typically 380–480 V AC (model dependent)

• Input Frequency: 50 / 60 Hz

• Output Voltage: Variable up to input voltage

• Output Frequency: 0–400 Hz (approximate range)

• Rated Output Current: Model-specific (refer to datasheet)

• Power Factor: High power factor design

• Efficiency: High efficiency at full and partial loads

Control & Performance

• Control Method:

  • Variable Frequency (V/f) Control

  • Advanced motor control options (depending on configuration)

• Speed Regulation: Precise and stable

• Torque Control: Smooth and accurate

• Acceleration / Deceleration: Programmable ramps

• Multi-Function I/O: Yes, configurable for process control

• Motor Protection: Overload, overcurrent, overvoltage, undervoltage, short circuit, thermal protection

Communication & Integration

• Communication Interfaces: Supports standard industrial protocols (e.g., Modbus, optional Ethernet/fieldbus modules)

• PLC Integration: Compatible with PLC/SCADA systems

• Digital & Analog I/O: Yes (programmable)

Environmental / Mechanical

• Cooling Method: Forced air cooling (built-in fan)

• Enclosure Rating: Standard IP20 / NEMA 1 (other options may be available)

• Mounting: Panel or cabinet mount

• Operating Temperature: Typically –10°C to +40°C

• Storage Temperature: –20°C to +70°C

• Humidity: 5%–95% RH, non-condensing

• Altitude: Up to ~1000 m (higher with derating)

Protection & Safety

• Protections Included:

  • Thermal overload

  • Overcurrent / short circuit

  • Overvoltage / undervoltage

  • Ground fault detection

  • Motor stall prevention

• Safety Compliance: Meets industrial safety standards

Physical

• Dimensions: Refer to detailed Eaton datasheet (varies by enclosure)

• Weight: Approximate based on configuration (varies by model)
