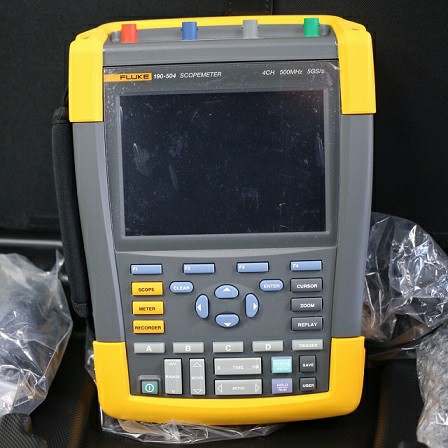

Fluke 190 504 III Four Channel ScopeMeter
The Fluke 190 504 III ScopeMeter is a high-performance portable oscilloscope designed for industrial troubleshooting, electrical testing, and predictive maintenance. With four input channels, it allows technicians and engineers to simultaneously monitor multiple signals, providing detailed insight into complex electrical and electronic systems.
Key Features
Four Independent Channels
Monitor and analyze up to four signals simultaneously, enabling correlation of events across different parts of a system. Ideal for industrial machinery, power electronics, and multi-phase systems.
High-Resolution Display
Equipped with a bright, high-resolution LCD screen that clearly displays waveforms, trends, and measurement data in real time.
Advanced Measurement Capabilities
-
Peak, RMS, and average measurements
-
Frequency, phase, and time interval analysis
-
Automated measurements for efficiency and accuracy
Rugged and Portable Design
Built for industrial environments, the ScopeMeter is rugged, handheld, and battery-powered, allowing reliable field diagnostics even in harsh conditions.
Data Logging and Trend Analysis
Capture waveform snapshots and record trends over time for predictive maintenance and system verification. Data can be transferred to a PC for further analysis.
Applications
The Fluke 190 504 III is ideal for:
-
Industrial troubleshooting of motors, drives, and control systems
-
Monitoring power quality in electrical networks
-
Diagnosing multi-phase electrical systems
-
Maintenance of automation and manufacturing equipment
-
Field measurements where portability and reliability are critical
Technical Specifications
| Specification | Detail |
|---|---|
| Channels | 4 simultaneous input channels |
| Bandwidth | 100 MHz (typical, depending on model) |
| Sampling Rate | Up to 1 GS/s (interleaved mode) |
| Display | High-resolution color LCD |
| Input Sensitivity | Up to 1 mV/div – 20 V/div |
| Connectivity | USB for PC data transfer |
| Data Logging | Up to several hours of waveform capture |
| Power | Rechargeable battery |
| Portability | Handheld, rugged design for field use |
| Accessories | Probes, carrying case, user manual, calibration certificate |
Why It’s Valuable
The Fluke 190 504 III ScopeMeter combines the precision of a laboratory oscilloscope with the portability of a field instrument, making it perfect for technicians and engineers who need to troubleshoot, maintain, and monitor electrical and electronic systems on-site. Its four-channel capability and advanced measurement tools provide fast, accurate diagnostics for complex industrial applications.
