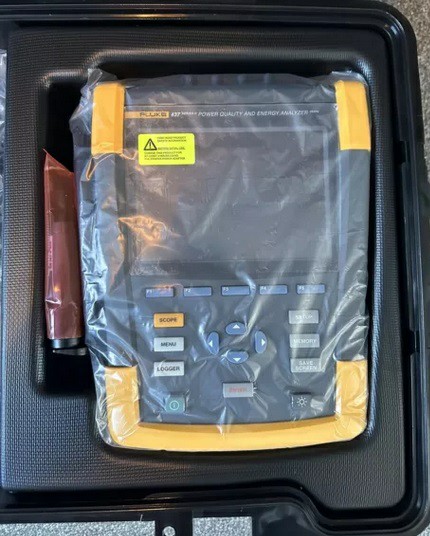

Fluke 437 II 400 Hz Power Quality Energy Analyzer

The Fluke 437 II is a high-performance 400 Hz power quality and energy analyzer designed for advanced electrical diagnostics, monitoring, and troubleshooting in demanding industrial, avionics, and power system environments. It captures detailed power quality measurements, identifies energy inefficiencies, and helps maintenance teams optimize electrical system performance with precision and reliability.

Professional Power Quality & Energy Analysis

• Supports 400 Hz operation, meeting military and avionics power standards (MIL‑STD 1399).

• Measures voltage, current, power, and power quality in real time for informed maintenance decisions.

• Captures measurements for all three phases and neutral with flexible current probes.

• Calculates energy costs associated with poor power quality, highlighting inefficiencies.

• Detects the impact of motor startups and load changes on electrical performance.

• Provides advanced power quality health data for quick assessment.

Advanced Diagnostic Capabilities

• Energy Loss Calculator: Quantifies active and reactive power losses to pinpoint inefficiencies.

• PowerWave Data Capture: Fast RMS waveform capture to characterize system dynamics, such as generator starts or UPS switching.

• Long-Term & Load Studies: Records trends and evaluates system performance over extended periods.

• Automatic Transient Capture: Records high-speed events without manual setup.

• IEC 61000‑4‑30 Class-A Compliance: Ensures measurement accuracy and consistency with international power quality standards.

Built for Robust Field Use

• High Safety Ratings: CAT IV 600 V / CAT III 1000 V for service entrance and distribution testing.

• Integrated Protective Holster: Shock-proof construction with dust and water resistance (IP51).

• Large Adjustable Display: Easy-to-read LCD with adjustable brightness and temperature compensation.

• Memory & Storage: Supports SD card storage up to 32 GB for trends, event logs, and waveform captures.

• Portable Power: Long battery operating time for extended field diagnostics.

Typical Use Cases

• Electrical maintenance teams verifying power system integrity

• Engineers performing load studies and energy efficiency assessments

• Technicians troubleshooting intermittent faults or electrical transients

• Facilities performing MIL‑STD-compliant power testing in avionics or military systems

Technical Specifications

Voltage & Frequency

• Voltage (Vrms ac+dc): 1 V to 1000 V (phase to neutral), resolution 0.01 V, accuracy ± 0.1 %

• Peak Voltage (Vpk): 1 Vpk to 1400 Vpk, resolution 1 V, accuracy ± 5 %

• Voltage Crest Factor (CF): 1.0 > 2.8, resolution 0.01, accuracy ± 5 %

• Operating Frequency Range:

  • 50 Hz range: 42.5 – 57.5 Hz, ± 0.01 Hz

  • 60 Hz range: 51 – 69 Hz, ± 0.01 Hz

  • 400 Hz range: 340 – 460 Hz, ± 0.1 Hz

Current & Power Measurements

• Current (ac+dc):

  • i430‑Flex 1×: 5 A – 6000 A, resolution 1 A, accuracy ± 0.5 % ± 5 counts

  • i430‑Flex 10×: 0.5 A – 600 A, resolution 0.1 A, accuracy ± 0.5 % ± 5 counts

  • 1 mV/A 1×: 5 A – 2000 A, resolution 1 A, accuracy ± 0.5 % ± 5 counts

  • 1 mV/A 10×: 0.5 A – 200 A (ac only), resolution 0.1 A, accuracy ± 0.5 % ± 5 counts

• Peak Current (A pk): Up to 8400 A (i430‑Flex), up to 5500 A (1 mV/A), resolution 1 A, accuracy ± 5 %

• Power (W, VA, var): Up to 6000 MW (i430‑Flex) or up to 2000 MW (1 mV/A), resolution 0.1 W to 1 MW, accuracy ± 1 % ± 10 counts

• Power Factor (Cos φ / DPF): 0 – 1, resolution 0.001, accuracy ± 0.1 % @ nominal load

Energy & Loss Analysis

• Energy (kWh, kVAh, kvarh): Accuracy ± 1 % ± 10 counts

• Energy Loss Calculator: Quantifies active and reactive power losses to identify inefficiencies

Unbalance & Signaling

• Voltage Unbalance: 0 – 20 %, resolution 0.1 %, accuracy ± 0.1 %

• Current Unbalance: 0 – 20 %, resolution 0.1 %, accuracy ± 1 %

• Mains Signaling: Adjustable thresholds and durations for signaling frequencies 60 Hz–3000 Hz

• Relative Voltage (%): 0 – 100 %, resolution 0.1 %, accuracy ± 0.4 %

Display & Interface

• Display: 153 mm diagonal LCD, 320 × 240 pixels, adjustable brightness

• Memory & Storage: SD card (8–32 GB) for trends, event logs, and waveform captures

• Ports: Mini‑USB‑B and isolated USB for PC connectivity

Safety & Environmental

• Safety Ratings: CAT IV 600 V / CAT III 1000 V

• Case & Protection: Rugged, shock-proof, IP51 dust/water resistance

• Operating Temp: 0 °C – 40 °C (battery operation); 40 °C – 50 °C without battery

• Storage Temp: –20 °C – 60 °C

• Humidity: Up to 95 % RH non-condensing (+10 °C–+30 °C); up to 75 % RH (+30 °C–+40 °C); up to 45 % RH (+40 °C–+50 °C)

• Altitude: Up to 2000 m @ CAT IV 600 V / CAT III 1000 V; up to 3000 m @ CAT III 600 V / CAT II 1000 V

Compliance & Standards

• MIL‑STD 1399 Compatibility: Power measurement per military shipboard power systems

• EMC Compliance: Meets EN 61326 emission and immunity requirements
