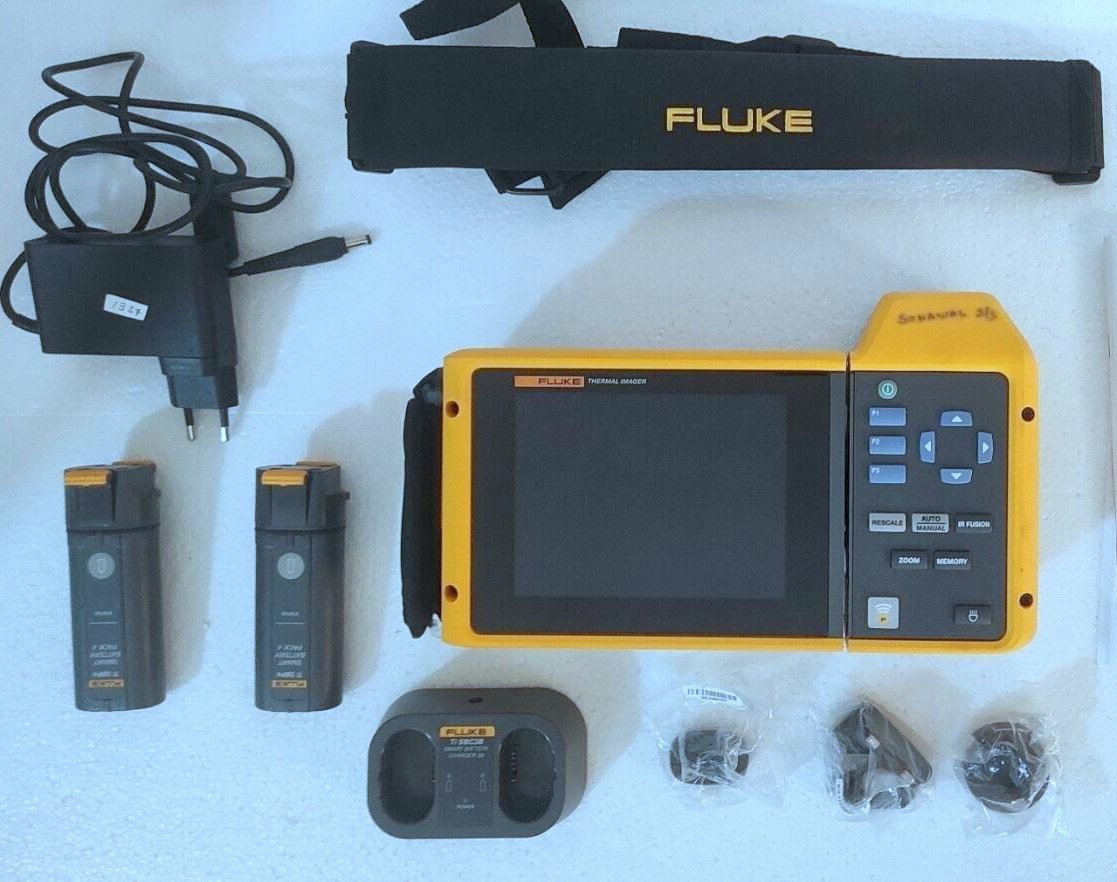

Fluke TiX580 Thermal IR Camera

The Fluke TiX580 Thermal IR Camera is a professional-grade thermal imaging solution designed to deliver high-resolution infrared visuals and precise temperature measurements for industrial inspections, predictive maintenance, and diagnostics. Featuring a rugged, ergonomic design and a large 5.7-inch touchscreen, the TiX580 allows operators to navigate complex environments and accurately identify problem areas.

Equipped with advanced imaging technologies such as SuperResolution, MultiSharp Focus, and LaserSharp Auto Focus, the TiX580 captures sharp and detailed thermal images even in challenging conditions. The Super Resolution mode enhances images by combining multiple frames for higher pixel detail, while the articulating 240° rotating lens allows flexible positioning to scan difficult-to-reach areas without operator strain.

The camera also features IR-Fusion technology, blending infrared and visible-light images for better context and easier interpretation of hotspots and potential faults. Picture-in-Picture (PIP) and AutoBlend modes further simplify visual analysis. On-board analytics and real-time temperature graphs help technicians make informed decisions in the field without needing to return to a workstation.

The TiX580 supports wireless connectivity for transferring images and measurement data to mobile devices and cloud storage, enabling collaboration, documentation, and reporting. Its accompanying software allows image optimization, annotation, and professional report generation.

Built for tough industrial environments, the TiX580 offers a wide temperature measurement range, precise thermal sensitivity, and multiple color palettes for effective visualization. It is ideal for electrical inspections, mechanical system evaluations, HVAC/R troubleshooting, R&D, oil and gas facilities, power generation, and building diagnostics.

Key Features

• High-Resolution Thermal Imaging: 640 × 480 IR sensor with SuperResolution mode for enhanced image detail.

• MultiSharp Focus: Automatically captures multiple focal planes for sharp images at all distances.

• LaserSharp Auto Focus: Precise temperature measurement using built-in laser distance measurement.

• Articulating Lens: 240° rotating lens for easy scanning of hard-to-reach areas.

• IR-Fusion Technology: Seamless blending of infrared and visible images for better context.

• Picture-in-Picture (PIP) & AutoBlend: Simplifies analysis by combining thermal and visual data.

• Large Touchscreen Display: 5.7-inch ergonomic touchscreen for intuitive operation.

• Wireless Connectivity: Share images and measurement data via mobile devices and cloud storage.

• On-Board Analytics: Real-time temperature graphs, hotspot detection, and data annotation.

• Rugged Design: Built for harsh industrial environments with reliable performance.

• Versatile Applications: Ideal for electrical inspections, mechanical systems, HVAC/R troubleshooting, oil & gas, power generation, R&D, and building diagnostics.

Specifications

Imaging & Sensor

• IR Resolution: 640 × 480 pixels

• SuperResolution Mode: 1280 × 960 pixels

• Thermal Sensitivity (NETD): ≤ 0.03 °C at 30 °C

• Temperature Measurement Range: −20 °C to 1200 °C

• Accuracy: ±2 °C or ±2 % of reading

• Lens Field of View: 24° × 18°

• Rotating Lens Articulation: 240°

Focus & Image Enhancement

• LaserSharp Auto Focus: Distance measurement-assisted focus

• MultiSharp Focus: Multi-plane focusing for sharp images

• IR-Fusion Technology: Blend of thermal and visible images

• Picture-in-Picture (PIP) & AutoBlend: Simplified visual analysis

Display & User Interface

• Display: 5.7-inch color touchscreen LCD

• Interface: Touchscreen navigation with ergonomic controls

• Color Palettes: Multiple selectable for thermal visualization

• Real-Time Graphs: Temperature trends and hotspot analysis

Connectivity & Data

• Wireless Connectivity: Fluke Connect enabled for mobile devices and cloud storage

• File Formats: JPEG, PNG, and compatible with report software

• On-Board Storage: Internal memory for images and data recording

• Software: Fluke Connect SmartView for analysis and reporting

Power & Battery

• Battery Type: Rechargeable Li-ion

• Battery Runtime: Up to 4–5 hours per charge

• Charging: External charger

Environmental & Physical

• Operating Temperature: −10 °C to 50 °C

• Storage Temperature: −20 °C to 70 °C

• Humidity: 10 % – 95 % non-condensing

• Dimensions: 219 mm × 189 mm × 111 mm

• Weight: Approx. 2.3 kg

• Durability: Rugged design for industrial environments

Applications

• Electrical inspections

• Mechanical system evaluation

• HVAC/R troubleshooting

• Predictive maintenance

• Oil and gas facilities

• Power generation

• Research & development

• Building diagnostics
