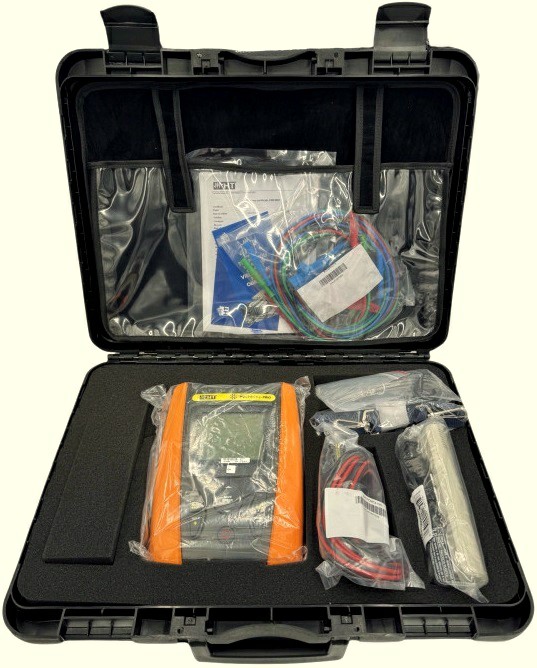

HT Instruments PVCHECKs PRO

The HT Instruments PVCHECKs PRO is a professional-grade commissioning tester designed specifically for photovoltaic (PV) systems. Ideal for solar installers, engineers, and maintenance teams, this versatile device provides accurate and reliable measurements to ensure your PV systems operate at peak efficiency.

Equipped with advanced features, the PVCHECKs PRO can measure voltage, current, insulation resistance, and continuity, while also performing comprehensive PV string and module diagnostics. Its intuitive interface and clear display make data collection fast and easy, reducing commissioning time and minimizing human error.

Built with durability in mind, the PVCHECKs PRO is rugged enough for fieldwork, yet compact and lightweight for portability. Whether you are installing new solar panels or performing routine maintenance, this tester provides all the essential tools needed to verify system performance and safety.

With HT Instruments PVCHECKs PRO, you gain confidence that every PV system meets industry standards and delivers optimal energy output.

• Comprehensive PV Testing – Measures voltage, current, insulation resistance, and continuity for PV modules and strings.

• Module & String Diagnostics – Detects faults, shading issues, and performance anomalies in PV installations.

• User-Friendly Interface – Intuitive LCD display and easy-to-navigate menus for fast, accurate readings.

• Durable & Portable – Rugged design suitable for fieldwork, lightweight for easy transport.

• Safety Compliance – Ensures PV systems meet industry standards for electrical safety.

• Data Logging & Storage – Records measurement data for reporting and system verification.

• Quick Commissioning – Speeds up PV system installation and maintenance processes.

• Versatile Applications – Suitable for residential, commercial, and industrial solar PV systems.

Technical Specifications

• PV Voltage Measurement: Up to 1500 V DC

• PV Current Measurement: Up to 20 A DC

• Insulation Resistance: 0 – 1000 MΩ

• Continuity Test: Yes, with audible buzzer

• Power Supply: Rechargeable Li-ion battery or AC adapter

• Display: High-contrast LCD with backlight

• Data Logging: Internal memory with USB connectivity for export

• Operating Temperature: -10°C to +50°C

• Storage Temperature: -20°C to +70°C

• Dimensions: 250 × 120 × 80 mm (L×W×H)

• Weight: Approx. 1.2 kg

• Protection: IP54 rated, shock-resistant casing

• Compliance: Meets IEC 61557 standards for PV system testing
