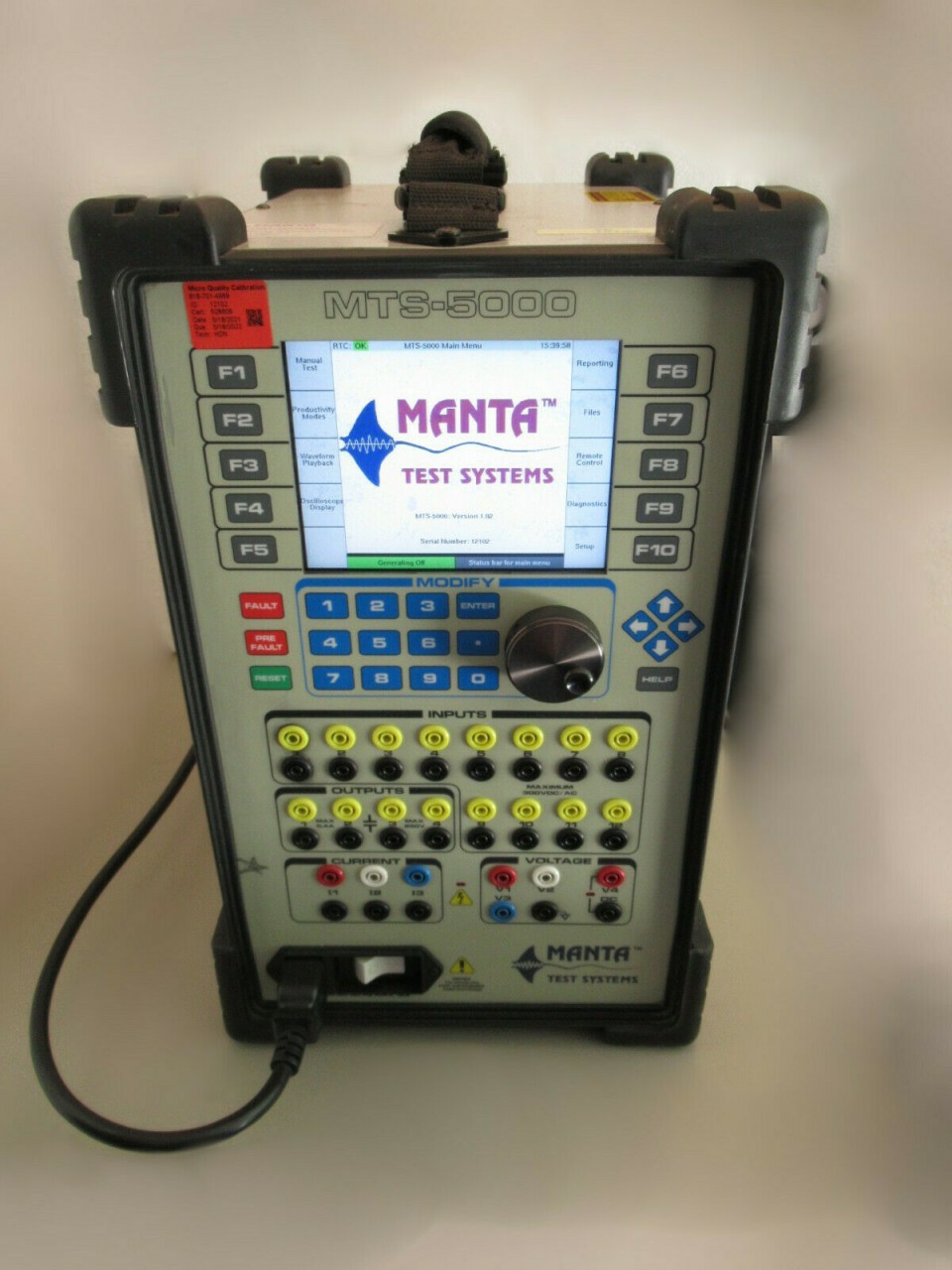

Manta MTS 5000 Three Phase Protective Relay Test System
The Manta MTS 5000 is a state-of-the-art three-phase protective relay test system engineered for precise, reliable, and efficient testing of protective relays in electrical power systems. Designed for utilities, industrial facilities, and testing laboratories, the MTS 5000 ensures accurate verification of relay performance, helping maintain the safety, stability, and reliability of electrical networks.
Equipped with advanced signal generation and measurement capabilities, the system can simulate complex three-phase conditions, test dynamic and transient responses, and measure relay pickup and response times with high precision. Its intuitive interface, high-speed processing, and clear display simplify setup and operation, reducing testing time and minimizing human error.
The MTS 5000 supports a wide range of relay types, including overcurrent, differential, distance, and multifunction relays, providing versatility for multiple applications. Its rugged, portable design allows for reliable field use, while optional software integration enables automated testing, data logging, and comprehensive analysis.
With the Manta MTS 5000, engineers and technicians can ensure that protective relays operate flawlessly under real-world conditions, minimizing the risk of equipment damage, outages, and safety hazards. This system is an essential tool for organizations that require high standards of electrical system protection and testing accuracy.
Key Features
-
Three-Phase Testing Capability – Simulates accurate three-phase conditions for comprehensive relay testing.
-
Wide Relay Compatibility – Supports overcurrent, differential, distance, and multifunction protective relays.
-
High-Precision Measurements – Measures relay response times, pickup values, and coordination with exceptional accuracy.
-
Advanced Signal Generation – Generates complex steady-state, dynamic, and transient waveforms for realistic testing.
-
User-Friendly Interface – Intuitive software and digital display streamline setup and operation.
-
Portable & Rugged Design – Durable construction suitable for both field and laboratory use.
-
Automated Testing Options – Supports automated test sequences, scripting, and preconfigured test plans.
-
Data Logging & Analysis – Stores measurement results and allows integration with analysis/reporting software.
-
Fast & Efficient Operation – Reduces setup and testing time, improving workflow.
-
Standards Compliance – Designed to meet international standards for protective relay testing.
Technical Specifications
Power & Inputs
-
Mains Supply: Single-phase 100–130 VAC @ 15 A or 210–250 VAC @ 10 A, 47–63 Hz.
-
Status Inputs: 12 DC/AC voltage/status channels, isolated, 0–300 VAC / ±300 VDC; programmable contact debounce.
-
Transducer Inputs: Low-level AC/DC voltage & current measurement for CT/PT calibration.
-
GPS & IRIG‑B Inputs: For external timing synchronization.
Output Channels
-
Voltage Outputs:
• 3 AC/DC voltage channels, 0–150 Vrms phase-neutral (direct coupled), 100 VA per phase.
• 1 DC voltage output, 10–300 VDC (max 85 W).
• Resolution: 0.01 V; Accuracy: ≥0.5% of setting or 0.03 V. -
Current Outputs:
• 3 AC/DC current channels, 0–30 Arms per channel (0–90 Arms via parallel), 600 VA max per channel.
• DC current up to 5 A (60 W).
• Resolution 0.001 A; Accuracy ≥0.5% of setting or 0.01 A (for >1% range). -
Frequency & Phase:
• Frequency range DC to 3000 Hz
• Phase range 0–359.9° (resolution 0.1°)
Digital I/O & Controls
-
Digital Outputs: 4 fully isolated Form A contacts (up to 0.4 A @ 250 VDC / 5 Arms @ 240 VAC).
-
Programmable triggers: Timer delays and state control options.
Metering, Sequencing & Calculations
-
Time measurement: 0–99,999 seconds/cycles, resolution 0.1 ms.
-
Sequence of Events: Records state changes at 0.1 ms resolution.
-
Computed Values: Positive/zero/negative sequence voltages & currents, impedance, harmonics, unbalance, etc.
Interface & Communication
-
USB & Ethernet: Standard USB and 10/100 Base-T.
-
Protocols: Ethernet support, ASCII commands, data transfer.
-
Front Panel: Direct display and controls for standalone operation.
Operational Capabilities
-
Testing Modes: Static, steady-state, dynamic, waveform playback, productivity modes.
-
Waveform Playback: Supports COMTRADE format for fault replay.
-
Paralleling Currents: Enables higher VA output for demanding tests.
-
Onboard Help Screens: Diagrams and tutorials displayed.
Physical & Environmental
-
Compact & Portable: ~49 lbs (~22 kg).
-
Display: Color vector display with intuitive menus.
-
Environmental: Suitable for field and laboratory conditions; optional GPS antenna available.
