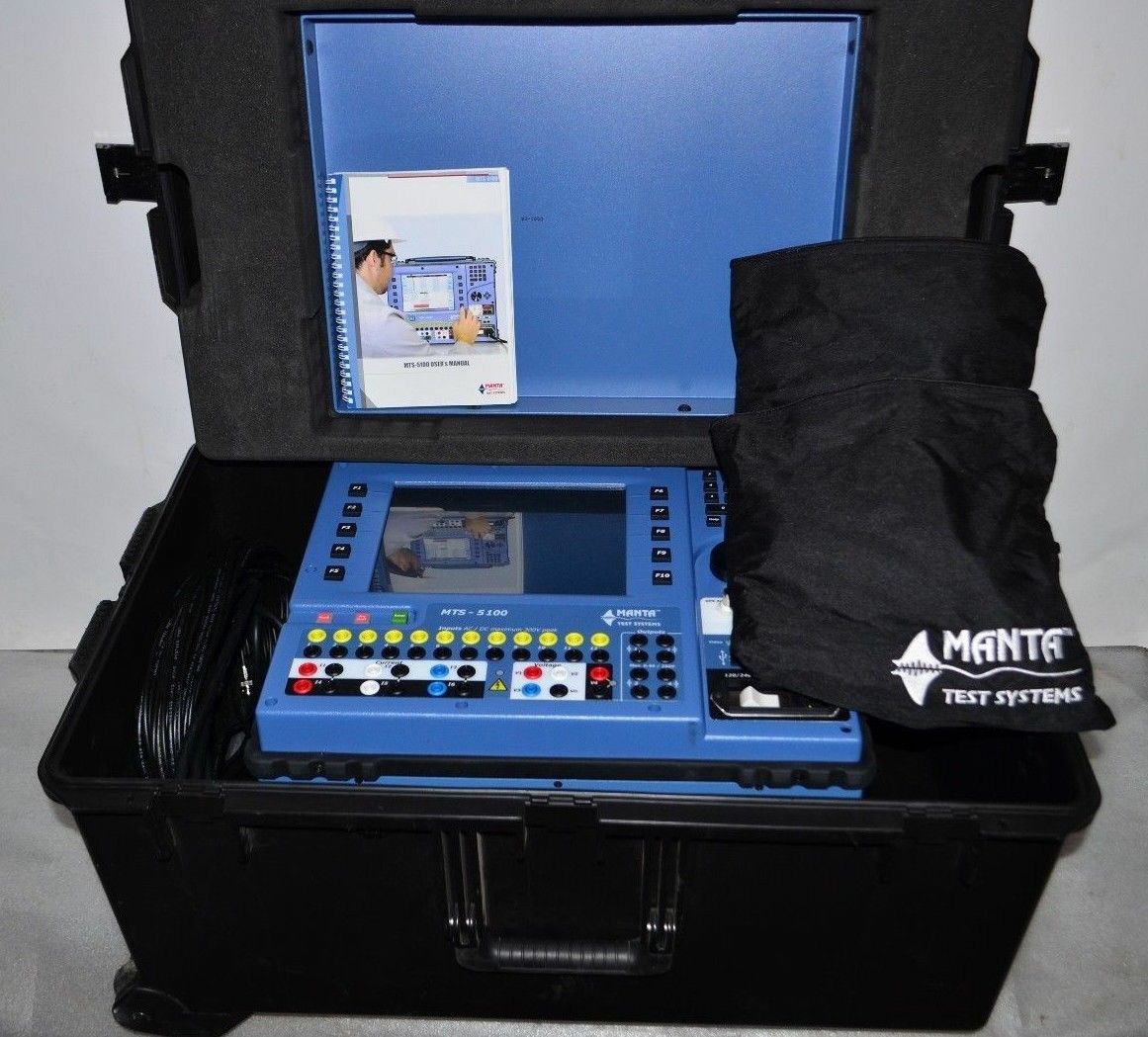

Manta MTS 5100

The Manta MTS 5100 is a high-performance three-phase protective relay test system designed for accurate, reliable, and efficient testing of protective relays in electrical power systems. Ideal for utilities, industrial facilities, and testing laboratories, this system ensures precise verification of relay functionality, helping to maintain the safety and stability of electrical networks.

Equipped with advanced signal generation and measurement capabilities, the MTS 5100 can simulate complex three-phase conditions, measure response times, and validate relay coordination. Its user-friendly interface, high-speed processing, and clear digital display simplify testing procedures, reducing setup time and improving accuracy.

The system supports a wide range of relay types, including overcurrent, differential, distance, and multifunction relays, making it versatile for multiple applications. Its robust construction and portable design allow for reliable field use, while optional software integration enables automated testing, data logging, and comprehensive analysis.

With the Manta MTS 5100, engineers and technicians can ensure that protective relays perform flawlessly under real-world conditions, minimizing risks of power outages, equipment damage, and safety hazards. This system represents a critical tool for any organization seeking to maintain high standards of electrical system protection and reliability.

Key Features

• Three-Phase Testing Capability – Accurately simulates three-phase conditions for comprehensive relay testing.

• Wide Relay Compatibility – Supports overcurrent, differential, distance, and multifunction protective relays.

• High-Precision Measurements – Measures relay response time, pickup values, and coordination with high accuracy.

• Advanced Signal Generation – Generates complex waveforms for realistic testing scenarios.

• User-Friendly Interface – Intuitive software and digital display simplify setup and operation.

• Portable & Robust Design – Rugged construction suitable for both field and laboratory use.

• Automated Testing Options – Supports automated test sequences and scripting for efficiency.

• Data Logging & Analysis – Stores measurement results and integrates with software for detailed reporting.

• Fast and Efficient Operation – Reduces test setup time and improves overall workflow.

• Compliance & Safety – Designed to meet international standards for protective relay testing.

Specifications

Signal Output & Power

• 6 AC/DC current outputs – supports 6-phase, 3-phase, and single-phase configurations for complex testing.

• 4 AC/DC voltage outputs – flexible voltage outputs for various types of relays.

• High output power for testing heavy loads, including electromechanical and digital relays.

Input & Control

• 12 contact / 0–250 Vrms voltage/status inputs for various signals and conditions.

• 4 contact outputs for simulating contacts like trip/OK, breaker position, etc.

• Transducer voltage/current inputs supported.

Synchronization & Communication

• GPS input (antenna included) for end-to-end synchronized testing.

• IRIG input & output for precise timing and synchronization.

• USB, Ethernet, and communication protocols including IEC 61850 GOOSE messaging.

Display & Operation

• Large 10.1-inch display for monitoring and direct control from the front panel.

• Standalone front-panel interface allows basic operation without a PC.

Testing Features & Capabilities

• Operates standalone or integrated with automated testing software.

• Supports steady-state, dynamic, and transient waveform testing for various power system conditions.

• Onboard memory and USB storage support for test results.

Environment & Compatibility

• Supports modern relay protocols including IEC 61850 & GOOSE.

• Compatible with a wide range of protection relays and industry standards.

Dimensions & Weight (reference from rental unit)

• Dimensions: approx. 48 × 36.8 × 29.7 cm

• Weight: approx. 22.2 kg (49 lbs)
