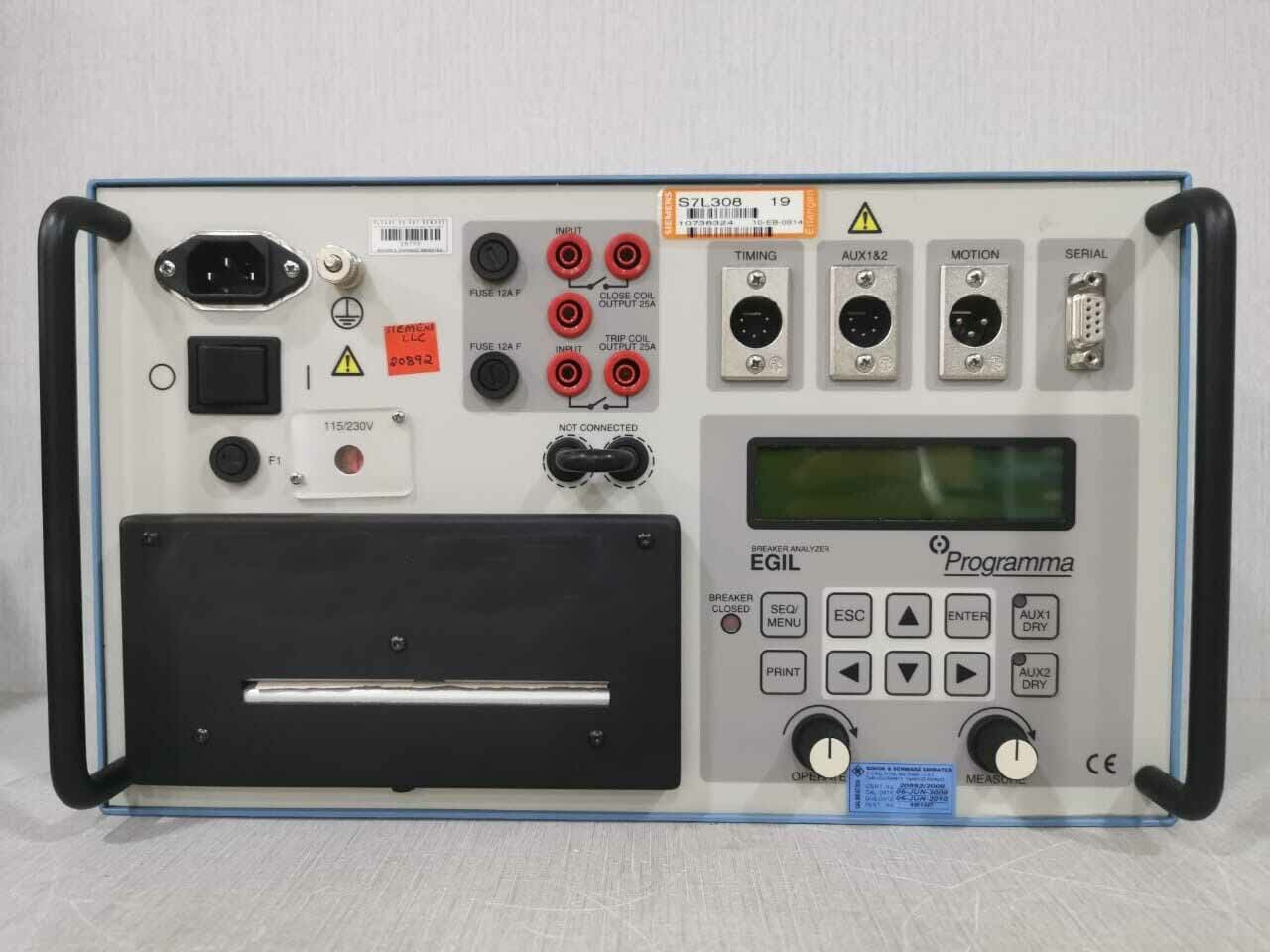

Megger Programma EGIL Circuit Breaker Test Analyzer

The Megger Programma EGIL is a professional circuit breaker test analyzer designed to deliver accurate, reliable, and comprehensive testing for medium- and high-voltage circuit breakers. Engineered by Megger, a global leader in electrical test and measurement equipment, this analyzer ensures precise measurements of timing, contact resistance, and operating performance to maintain safety and efficiency in power systems.

Equipped with advanced electronic measurement technology, the EGIL Analyzer allows engineers and technicians to perform both static and dynamic tests, capturing detailed data on breaker performance. Its intuitive interface, combined with robust hardware, ensures quick setup and dependable operation in both field and laboratory environments.

Key features:

• Accurate timing measurements for precise evaluation of circuit breaker operations

• Contact resistance testing to assess electrical continuity and wear

• User-friendly interface for easy operation and data recording

• Comprehensive data analysis to support maintenance and reliability planning

• Portable and durable design, suitable for field use in challenging environments

Ideal for utilities, industrial facilities, and service companies, the Megger Programma EGIL Circuit Breaker Test Analyzer helps ensure the reliability, safety, and longevity of electrical protection systems.

Technical Specifications

• Model: Programma EGIL

• Type: Circuit Breaker Test Analyzer

• Manufacturer: Megger

• Origin: UK (Original Megger Product)

• Measurement Functions:

  • Trip timing (opening/closing time)

  • Contact resistance

  • Coil current and voltage

  • Operating mechanism performance

• Breaker Types Supported: Medium and high-voltage circuit breakers, including SF₆, oil, vacuum, and air types

• Test Modes: Static, dynamic, and manual operation modes

• Input Voltage: 100–240 V AC (50/60 Hz)

• Power Consumption: Approx. 50–150 W depending on test configuration

• Data Storage: Internal memory for test results, USB export capability

• Interface: LCD display with graphical user interface, USB, RS-232, optional PC connectivity

• Accuracy: ±0.1 ms for timing measurements, ±0.1 mΩ for contact resistance

• Operating Temperature: 0°C – 50°C

• Storage Temperature: -20°C – 70°C

• Dimensions: Approx. 420 × 300 × 180 mm

• Weight: Approx. 12–15 kg

• Certifications: CE, IEC compliant

• Applications: Testing and maintenance of industrial, utility, and high-voltage circuit breakers for reliability and safety verification
