Description

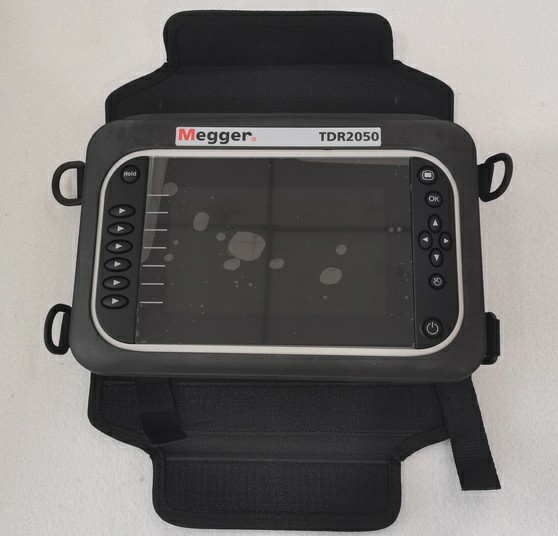

Megger TDR 2050 TDR Cable Fault Locator

The Megger TDR 2050 is a professional Time Domain Reflectometer (TDR) designed for technicians, engineers, and utility professionals who need precise and reliable cable fault detection. This advanced instrument allows users to quickly locate and diagnose faults in metallic cables, including open circuits, short circuits, and impedance changes, minimizing downtime and maintenance costs.

Key Features:

• High-Precision Fault Location: Accurately detects cable faults over long distances with minimal error.

• Wide Cable Compatibility: Supports a variety of metallic cables, including power, telecom, and industrial control cables.

• User-Friendly Interface: Large, intuitive display and simple navigation for quick testing in the field.

• Portable & Rugged Design: Lightweight, durable construction suitable for harsh environments and field operations.

• Distance Measurement: Provides real-time distance to fault measurement for efficient troubleshooting.

• Multiple Testing Modes: Offers pulse width and velocity factor adjustments for optimized fault detection.

• Data Storage & Reporting: Store test results for maintenance records, trend analysis, and reporting purposes.

Applications:
The Megger TDR 2050 is ideal for utilities, industrial facilities, telecom networks, and maintenance teams. It is used to locate faults in underground, overhead, and indoor cables to prevent extended outages and ensure network reliability.

Why Choose Megger TDR 2050:
With its high accuracy, ease of use, and rugged portability, the Megger TDR 2050 reduces troubleshooting time, improves cable maintenance efficiency, and helps prevent costly downtime. It is a reliable solution for professionals who demand precise fault location and performance verification in any environment.

Included in the Kit:

• Megger TDR 2050 TDR Cable Fault Locator

• Test leads and clamps

• Protective carrying case

• User manual and documentation

Ensure fast and reliable cable fault detection with the Megger TDR 2050 – the professional choice for modern cable diagnostics.

Technical Specifications

General & Functionality

• Device Type: Dual-channel Time Domain Reflectometer (TDR) for locating faults in metallic paired cables

• Input Protection: CAT IV 600 V

• Water/Dust Protection: IP54 – dust and splash resistant

• Operating Modes: Step & Pulse TDR selection for near and far fault detection

• Automatic Features:

  • Auto Setup for quick configuration

  • AutoFind & FindEnd to simplify interpretation and locate cable ends

  • Trace Tagging to store custom names for each trace

Range & Accuracy

• Distance Range: up to 20 km / 65,000 ft depending on cable type and velocity factor

• Minimum Resolution: 0.1 m (100 mm)

• Accuracy: ±1 % of distance + 1 pixel (with correct velocity factor)

• Pulse Output: up to 20 V peak-to-peak to open circuit (depending on cable & range)

• Velocity Factor (VF): adjustable 0.20 – 0.99

• Selectable Output Impedance: 25, 50, 75, 100, 125, 140 Ω + AUTO

Display & Interface

• Screen: Backlit color graphics LCD, 800 × 480 pixels

• Trace Memory: Store up to 100 traces, USB connection to PC for upload/download

• Additional Software: Compatible with TraceXpert for PC analysis

Power & Physical

• Battery: Rechargeable Li-ion (≈12 hours typical operation)

• Dimensions: approx. 290 × 190 × 55 mm

• Weight: approx. 1.7 kg

Operating Conditions

• Operating Temperature: −15 °C to +50 °C

• Storage Temperature: −20 °C to +70 °C

Included in the Kit

• TDR 2050 dual-channel cable fault locator

• Fused test leads (CAT IV rated)

• USB download kit

• Protective carry case

• Charger & user manual
