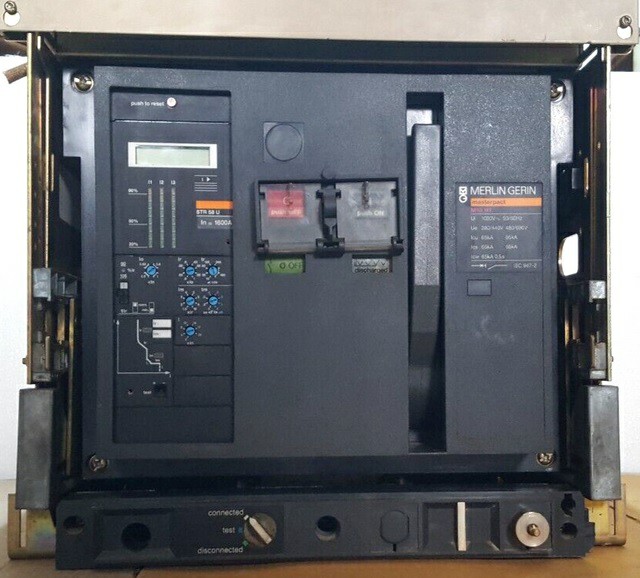

Merlin Gerin Masterpact M16 H1 1600A

The Merlin Gerin Masterpact M16 H1 1600A is a high‑performance low‑voltage air circuit breaker engineered to deliver reliable protection, precise fault interruption, and robust switching performance for industrial, commercial, and utility electrical distribution systems. As part of the Masterpact family from Schneider Electric, this breaker combines advanced protection technology with durable mechanical construction to ensure safety, uptime, and system continuity in demanding power environments.

Designed with a 1600 ampere frame rating, the Masterpact M16 H1 breaker is ideal for main and feeder circuit applications in medium‑ and large‑scale switchgear assemblies, data centers, manufacturing plants, and infrastructure facilities. Its strong interrupting capacity supports effective clearing of overloads, short circuits, and fault conditions, helping to protect critical equipment and minimize downstream damage.

The breaker typically incorporates an advanced electronic trip unit that offers configurable protection functions including long‑time, short‑time, instantaneous, and optional ground‑fault elements. These settings allow precise coordination with other protective devices in the distribution network, improving selectivity and reducing nuisance tripping while enhancing system safety.

With its rugged contact system and arc‑interruption mechanisms, the Masterpact M16 H1 supports frequent operation under heavy load conditions while maintaining reliable performance. Its modular and accessible design also facilitates maintenance, inspection, and component replacement, helping reduce downtime and lifecycle costs.

Suitable for integration with building automation and power‑monitoring systems, this breaker supports optional communication modules, auxiliary contacts, shunt trips, and remote trip capabilities for enhanced control and diagnostics. The breaker’s sturdy mechanical structure and compliance with major industry standards make it a dependable solution for mission‑critical power distribution infrastructure where reliability, safety, and operational efficiency are key.

Overall, the Merlin Gerin Masterpact M16 H1 1600A offers a balanced combination of protection intelligence, mechanical durability, and flexible configuration options, making it a trusted choice for modern electrical distribution systems.
