Description

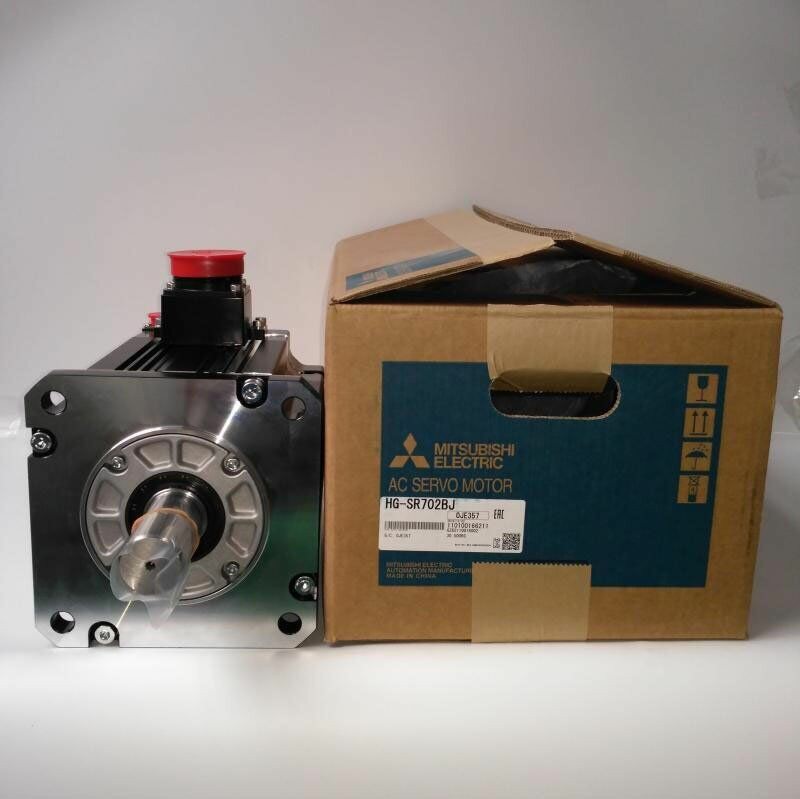

Mitsubishi HG-SR702BJ Servo Motor

The Mitsubishi HG-SR702BJ is a high-performance AC servo motor designed for precise motion control in industrial automation applications. Built to deliver reliable and accurate positioning, this servo motor ensures smooth operation and maximum productivity in high-speed and high-precision machinery.

Key Features:

• High Torque & Precision: Delivers consistent torque and precise positioning for demanding industrial processes.

• Compact & Durable Design: Optimized for space-saving installations while maintaining long operational life.

• Advanced Feedback System: Equipped with high-resolution encoder for accurate speed and position control.

• Wide Application Range: Suitable for CNC machines, robotics, packaging, printing, and other automated systems.

• Low Vibration & Noise: Ensures quiet and stable operation, even at high speeds.

• Easy Integration: Compatible with Mitsubishi servo drives for seamless motion control.

• High Efficiency: Reduces energy consumption while maintaining performance.

Applications:
The HG-SR702BJ is ideal for industrial automation setups requiring high-speed, high-precision motion. It is commonly used in CNC machinery, robotics, factory automation, packaging lines, and printing systems, where reliability and accuracy are critical.

Why Choose Mitsubishi HG-SR702BJ:
This servo motor combines precision, power, and durability in a compact form factor, making it an excellent choice for engineers and technicians seeking high-performance motion solutions. Its advanced feedback system allows for smooth, accurate control, helping to optimize production efficiency and reduce maintenance needs.

Included in the Package:

• Mitsubishi HG-SR702BJ Servo Motor

• Encoder and connection cables

• User manual and documentation

Optimize your industrial automation projects with the Mitsubishi HG-SR702BJ Servo Motor – the reliable solution for high-precision motion control.

Technical Specifications

Power & Performance

• Rated Output Power: 7.0 kW

• Rated Torque: 33.4 N·m

• Maximum Torque: 100 N·m

• Rated Speed: 2000 r/min

• Maximum Speed: 3000 r/min

• Rated Current: ±26 A

• Maximum Current: ±83 A

• Technology: AC servo motor, medium inertia

Feedback & Control

• Encoder: Built‑in 22‑bit Absolute/Incremental

• Resolution: 4,194,304 pulses per revolution

Physical & Construction

• Power Supply: 200 – 240 V AC

• Protection Rating: IP67 (dust and water resistant)

• Shaft Type: Standard straight shaft

• Flange Size: 176 × 176 mm

• Approx. Weight: ±33 kg

• Material: Aluminum alloy casing

• Brake: Integrated electromagnetic brake

• Brake Rated Voltage: 24 V DC

• Brake Static Friction Torque: ±44 N·m

• Brake Power Consumption: ±34 W

Operating Conditions

• Operating Temperature: 0 °C – 40 °C

• Operating Humidity: 10 % – 80 %

• Applicable Standards: CE, EAC, IEC, UL

Drive Compatibility

• Compatible with MELSERVO‑J4 servo amplifiers such as MR‑J4‑700A/B (sold separately)
