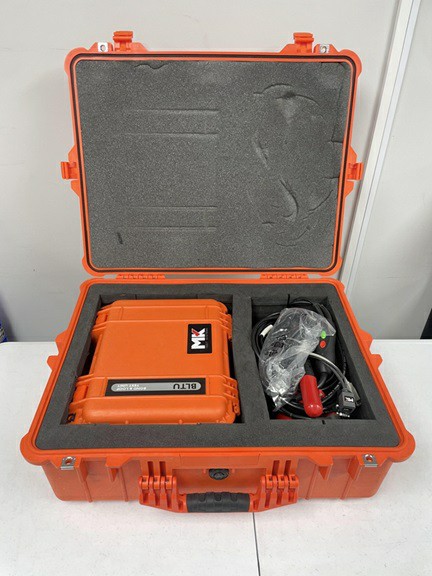

MK Test BLTU Bond Loop Tester

The MK Test BLTU Bond Loop Tester is a high-performance instrument specifically designed for accurate measurement of bond loop resistance in electrical grounding systems. Engineered to meet stringent industry standards, the BLTU provides precise and repeatable low-resistance measurements, ensuring the integrity and safety of earthing and bonding installations.

This advanced tester is ideal for power generation facilities, substations, renewable energy sites, industrial plants, and utility maintenance operations. It allows engineers and technicians to verify that bond loops provide a reliable low-resistance path to ground, helping to prevent hazardous touch voltages and ensuring compliance with electrical safety regulations.

The MK Test BLTU utilizes high-current injection methods to accurately measure very low resistance values, minimizing the influence of contact resistance and external interference. Its robust construction ensures dependable performance in demanding field environments, while the intuitive controls and clear display make operation straightforward and efficient.

Designed for both field and laboratory use, the BLTU offers reliable diagnostics for grounding systems, lightning protection systems, and protective bonding conductors. With its precision engineering and durable design, the MK Test BLTU Bond Loop Tester is a trusted solution for professionals who require accurate low-resistance measurement and dependable long-term performance.

Technical Specifications

Measurement Range

• Very low resistance measurement suitable for bond loops, grounding systems, and protective bonding conductors

• Typical measurement: 0.000 Ω to several ohms (precise low-ohm range)

Measurement Method

• High-current four-terminal (Kelvin) measurement for accurate low-resistance readings

• Reduces effects of lead and contact resistance

Test Current

• High test current injection (e.g., up to 10 A or more, depending on model) for improved measurement accuracy

Display & Interface

• Clear digital display for easy readout of resistance values

• Simple keypad or control interface for straightforward operation

Accuracy & Resolution

• High resolution suitable for very low resistance values

• Excellent measurement repeatability and accuracy (specific % or ppm depends on configuration)

Power Source

• Rechargeable battery pack or mains power options (model dependent)

• Long battery life for extended field use

Environmental & Physical

• Rugged, portable housing designed for site environments

• Durable connectors and test leads for frequent field use

• Compact and easy to transport

Safety & Compliance

• Designed to meet relevant electrical safety standards for low-voltage measurement instruments

• Protective circuitry to safeguard against overload and incorrect connection

Applications

• Bond loop resistance testing

• Grounding and earthing system verification

• Lightning protection conductor testing

• Safety inspections and compliance testing
