Morgan Schaffer Myrkos 11526003

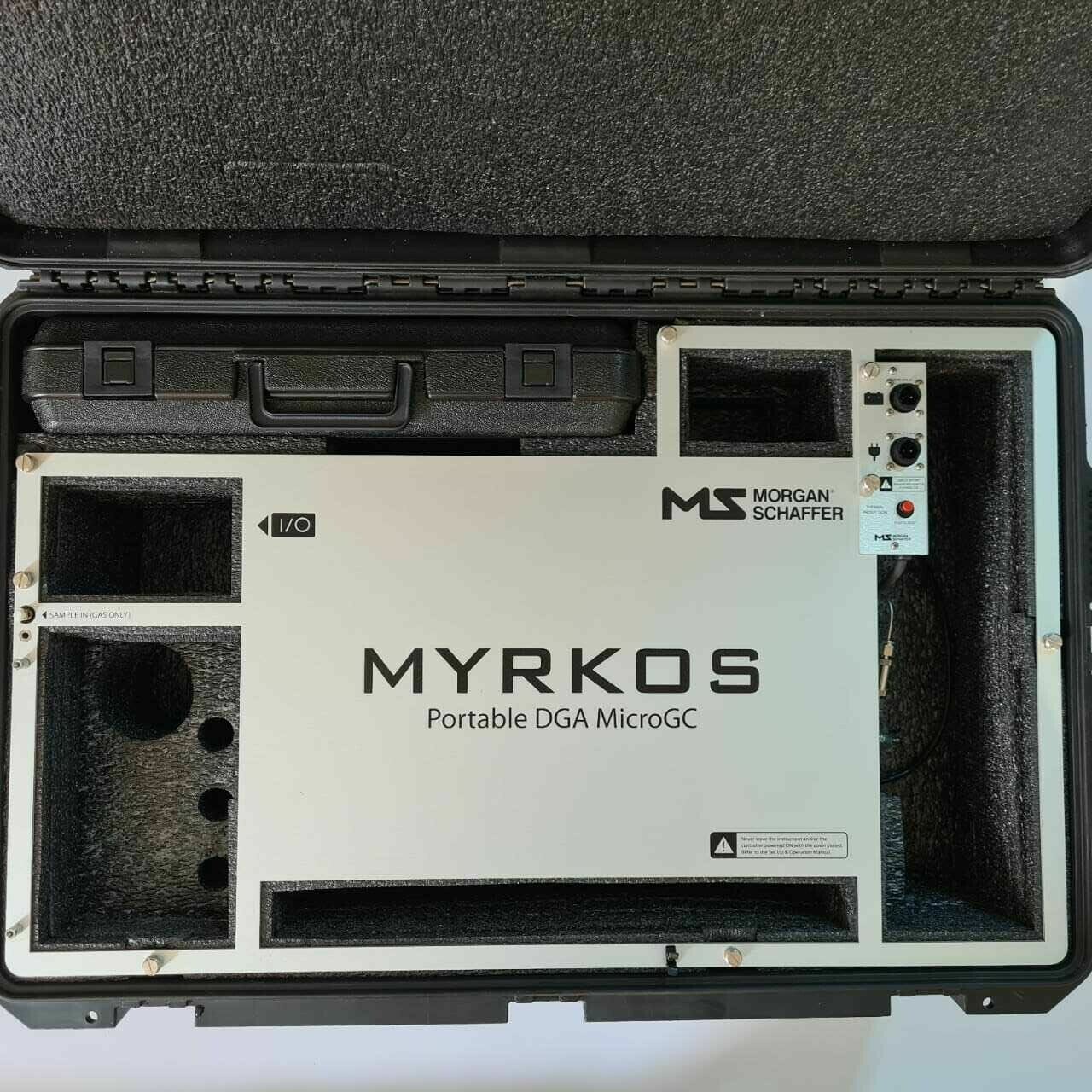

The Morgan Schaffer Myrkos 11526003 is a state-of-the-art portable gas analyzer designed for Dissolved Gas Analysis (DGA) in transformers and other electrical equipment. Ideal for utilities, industrial maintenance teams, and field engineers, this advanced Micro GC system provides accurate, fast, and reliable detection of key fault gases to assess the health and performance of electrical insulation systems.

Equipped with precision micro gas chromatography technology, the Myrkos 11526003 enables the identification and quantification of multiple dissolved gases, including hydrogen (H₂), methane (CH₄), ethylene (C₂H₄), acetylene (C₂H₂), carbon monoxide (CO), and carbon dioxide (CO₂). Its compact, portable design allows for on-site testing, reducing the need for time-consuming laboratory analysis while delivering rapid results.

Key Features:

• Portable Micro GC analyzer for on-site transformer DGA

• Accurate detection and quantification of H₂, CH₄, C₂H₂, C₂H₄, CO, and CO₂

• Rapid analysis with results available within minutes

• User-friendly interface with clear graphical display

• Data logging, storage, and reporting capabilities for maintenance and compliance

• Lightweight, robust design suitable for field operations

• Advanced diagnostic tools to support preventive maintenance and fault detection

Whether used for routine monitoring, fault investigation, or preventive maintenance, the Morgan Schaffer Myrkos 11526003 DGA Micro GC Portable Gas Analyzer ensures reliable, high-precision analysis to safeguard transformers and extend the operational life of critical electrical equipment.

Specifications

1. Gas Analysis & Measurement

• Analyzed Gases: Hydrogen (H₂), Methane (CH₄), Ethylene (C₂H₄), Acetylene (C₂H₂), Carbon Monoxide (CO), Carbon Dioxide (CO₂)

• Analysis Method: Micro Gas Chromatography (Micro GC)

• Detection Range:

  • H₂: 0–2000 ppm

  • CH₄: 0–2000 ppm

  • C₂H₂: 0–500 ppm

  • C₂H₄: 0–2000 ppm

  • CO: 0–5000 ppm

  • CO₂: 0–5000 ppm

• Detection Accuracy: ±5 % of reading or better

• Analysis Time: Typically 5–10 minutes per sample

2. Functions & Capabilities

• On-site Dissolved Gas Analysis (DGA) for transformers and electrical equipment

• Simultaneous multi-gas measurement

• Data logging and storage for multiple test sessions

• Trend analysis and fault gas diagnostics

• Calibration with standard gas mixtures

• Graphical display of results and alarms for abnormal gas concentrations

3. Display & Interface

• Color touchscreen LCD display for real-time measurements

• Intuitive menu-driven interface for guided operation

• USB and Ethernet connectivity for data transfer and reporting

• Optional software for advanced data analysis and reporting

4. Safety & Compliance

• Safe operation for field use in electrical substations

• Overvoltage and short-circuit protection integrated

• Complies with IEC 60599, IEEE C57.104, and other DGA testing standards

• Robust housing suitable for industrial and field environments

5. Physical & Environmental

• Dimensions: Approx. 430 × 270 × 150 mm

• Weight: ~10 kg (portable and easy to carry)

• Operating Temperature: 0 °C to 50 °C

• Storage Temperature: -20 °C to 60 °C

• Humidity: 0 – 95 % non-condensing

• Housing: Rugged, shock-resistant, and portable

6. Accessories (Typical)

• Sampling probe and tubing for transformer oil/gas collection

• Calibration gas kit

• Carrying case for portability

• Power supply and battery pack for field use

• User manual and calibration certificate

• Optional software for data analysis and reporting
