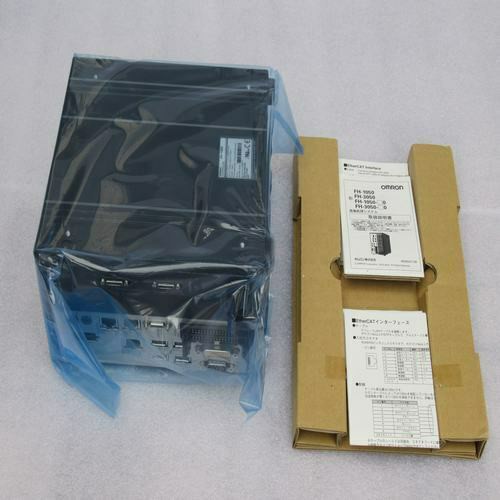

Omron FH 1050 Vision Controller

The Omron FH-1050 Vision Controller is a high-performance industrial machine vision system designed for advanced inspection, measurement, alignment, and identification applications in automated production lines. As part of Omron’s FH Series, the FH-1050 delivers ultra-fast image processing, high-precision inspection algorithms, and flexible multi-camera integration to meet demanding manufacturing environments.

Built for accuracy and reliability, the FH-1050 supports complex inspection tasks such as defect detection, dimension measurement, OCR/OCV reading, barcode verification, and assembly verification. Its powerful processing engine enables stable high-speed inspection even in high-throughput industries such as automotive, electronics, semiconductor, pharmaceutical, and packaging.

The controller features intuitive configuration software that simplifies system setup, calibration, and parameter tuning. Advanced vision tools—including shape search, color inspection, edge detection, pattern matching, and 3D measurement compatibility—ensure consistent and repeatable inspection performance.

With support for multi-camera synchronization, the FH-1050 can handle complex inspection processes across multiple production stages simultaneously. Its robust communication capabilities allow seamless integration with PLCs, robots, and factory networks through Ethernet/IP, EtherCAT, and other industrial communication protocols.

Engineered for industrial durability, the Omron FH-1050 operates reliably in challenging environments, offering stable performance, fast data processing, and long operational life. It is an ideal solution for manufacturers seeking enhanced quality control, reduced defects, and improved production efficiency.

Key Features

• High-Speed Image Processing
  Delivers ultra-fast inspection and analysis for high-throughput production lines.

• Multi-Camera Support
  Synchronizes and controls multiple cameras for complex inspection tasks.

• Advanced Vision Tools
  Includes shape search, edge detection, pattern matching, color inspection, and 3D measurement compatibility.

• Precision Inspection
  Enables accurate defect detection, dimension measurement, OCR/OCV reading, and barcode verification.

• Intuitive Configuration Software
  Simplifies system setup, calibration, and parameter adjustments.

• Industrial Communication Compatibility
  Supports Ethernet/IP, EtherCAT, and other industrial protocols for seamless integration with PLCs, robots, and factory networks.

• Robust Industrial Design
  Ensures reliable performance under challenging factory conditions.

• High Repeatability & Accuracy
  Maintains consistent inspection results for quality control and production optimization.

• Flexible Application Support
  Suitable for automotive, electronics, semiconductor, pharmaceutical, packaging, and general manufacturing.

• Reduced Defect & Increased Efficiency
  Helps lower production errors while improving throughput and overall process reliability.

Specifications

Electrical & Power

• Input Voltage: 24 V DC ±10%

• Power Consumption: Approx. 50 W (varies with connected cameras)

• Interface: Ethernet, USB, I/O for camera trigger and inspection results

Vision & Imaging

• Camera Compatibility: Area scan cameras (monochrome and color), up to multiple cameras simultaneously

• Maximum Image Resolution: Supports cameras up to 5 MP (depends on camera used)

• Frame Rate: High-speed acquisition, up to 60 fps per camera (depending on resolution)

• Inspection Functions:
  – Shape search and pattern matching
  – Edge and contour detection
  – Color inspection
  – 3D measurement support (with compatible 3D cameras)
  – OCR/OCV text reading
  – Barcode and Data Matrix verification

Control & Processing

• Processing Performance: High-speed multi-threaded CPU optimized for real-time inspections

• Multi-Camera Synchronization: Yes, supports complex production line inspection with multiple cameras

• Memory & Storage: Built-in memory for inspection recipes and image data storage

Communication & Integration

• Protocols Supported: Ethernet/IP, EtherCAT, Modbus TCP, and other industrial standards

• PLC Integration: Seamless communication with Omron and third-party PLCs

• I/O Ports: Digital input/output for triggers, pass/fail signals, and alarm outputs

Mechanical & Environmental

• Mounting: DIN rail or panel mount compatible

• Operating Temperature: 0–50°C

• Storage Temperature: −20–60°C

• Humidity: 20–85% RH (non-condensing)

• Dimensions: Approx. 130 × 150 × 80 mm (varies by configuration)

• Weight: Approx. 1.2 kg

Applications

• Automotive component inspection

• Electronics and PCB verification

• Semiconductor wafer and packaging inspection

• Pharmaceutical and medical product quality control

• Food & beverage packaging and labeling inspection

• General high-speed industrial quality assurance
