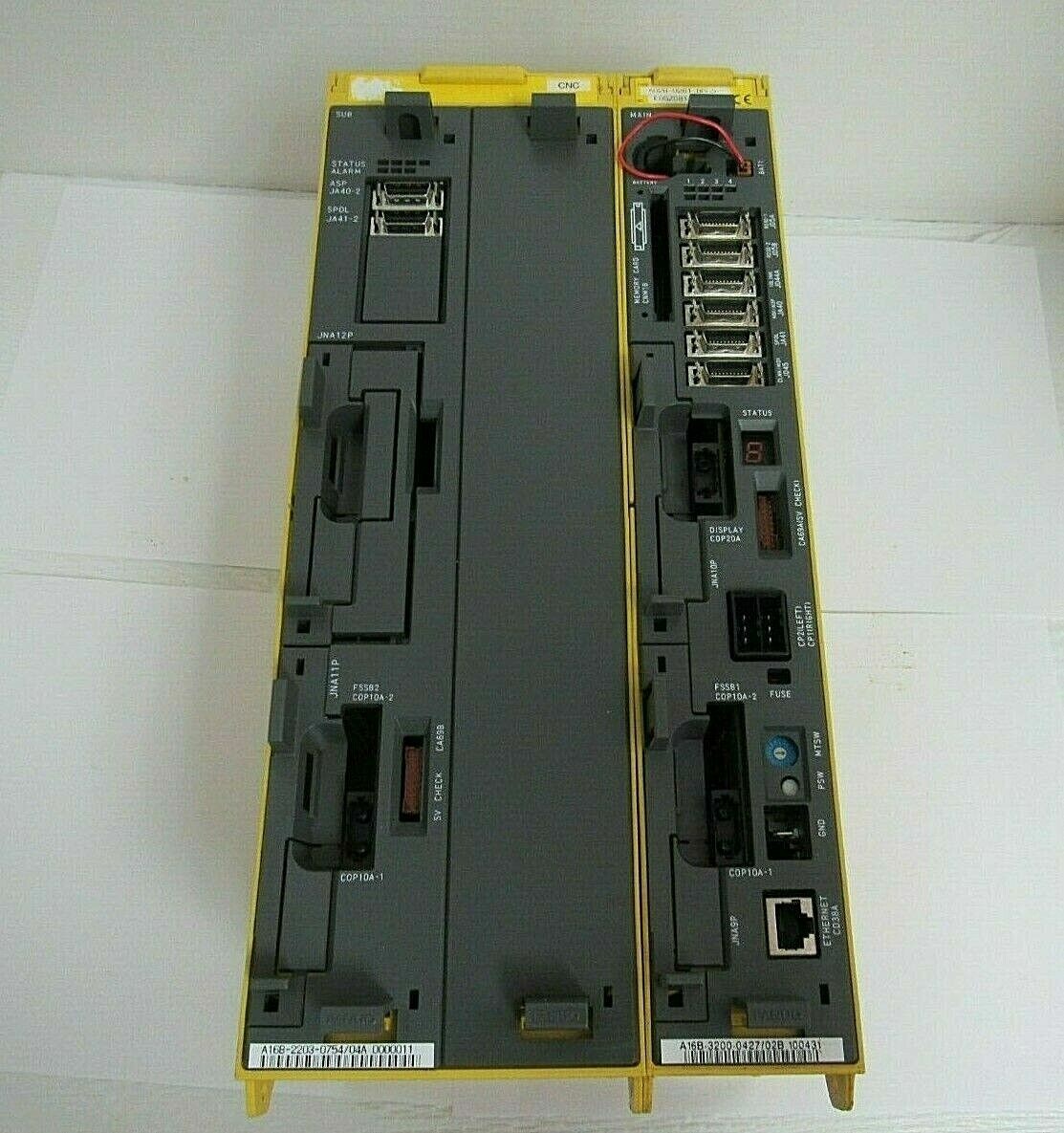

Original Fanuc Corporation 16i MB Control Unit

The Original Fanuc 16i MB A02B 0281 B803 Control Unit is a genuine CNC control module designed to provide reliable, high-performance operation for Fanuc 16i MB series machines. Engineered to deliver precise and stable control of milling, turning, and multi-axis CNC systems, this unit ensures optimal performance in industrial machining environments.

Built by Fanuc, a leader in CNC automation, the 16i MB control unit manages complex machine operations by coordinating spindle motion, axis drives, and auxiliary functions with high accuracy. Its robust electronic design allows for long-term reliability, reduced downtime, and consistent machining results even under demanding production conditions.

The unit features advanced communication interfaces to integrate seamlessly with existing Fanuc CNC systems, enabling real-time monitoring, diagnostics, and control. With built-in protections against electrical faults and thermal overload, it safeguards both the control electronics and connected machinery.

Ideal for replacement, refurbishment, or retrofitting, the Fanuc 16i MB A02B 0281 B803 Control Unit helps maintain CNC machine precision, supports uninterrupted manufacturing processes, and extends the operational life of industrial equipment.

It is compatible with various 16i MB series controllers and is widely used in metalworking, automotive, aerospace, and precision manufacturing industries where Fanuc systems are deployed.

Technical Specifications

• Model: 16i MB Control Unit

• Part Number: A02B‑0281‑B803

• Function:
  – Main control unit for Fanuc 16i MB CNC systems
  – Manages logic, axis coordination, spindle, and machine I/O functions
  – Executes machining programs from G-code input

Electrical Specifications

• Input Voltage: Typically as per Fanuc system (internal DC voltage depends on CNC configuration)

• Duty / Power: Matches CNC system rating (unit connects to main control bus)

• Interface: Digital/analog I/O, bus connectors to other CNC PCBs

Control Capabilities

• Precision Control: High-accuracy spindle and axis regulation

• Multi-Axis Support: Supports multiple axes depending on configuration

• Program Execution: Real-time execution of G/M-code programs

• Feedback Loop: Integrated with spindle/motor encoders and feedback loops

Integration & Communication

• Ports & Interfaces:
  – Fanuc bus connector for communication with CNC mainboard
  – I/O connections for sensors, limit switches, and spindle feedback

• Compatibility: Specific to Fanuc 16i MB CNC systems

• Diagnostics: Supports control status monitoring and fault logging

Safety & Protection

• Circuit Protection: Guards against short-circuit, overvoltage, and electrical noise

• Thermal Protection: Prevents overheating of the unit

• EMI Suppression: Designed to minimize electromagnetic interference in industrial environments

Physical & Environmental

• Mounting: Designed for CNC control panel installation

• Dimensions: Standard module size for 16i MB series

• Operating Environment:
  – Typical industrial operating temperature: ~0–40 °C
  – Relative humidity: Normal (non-condensing)

• Housing Material: Industrial casing with ventilation for cooling

Application Suitability

• Used On: Milling and turning machines using Fanuc 16i MB CNC controllers

• Industries:
  – Metalworking
  – Automotive manufacturing
  – Aerospace & precision engineering
  – General fabrication
