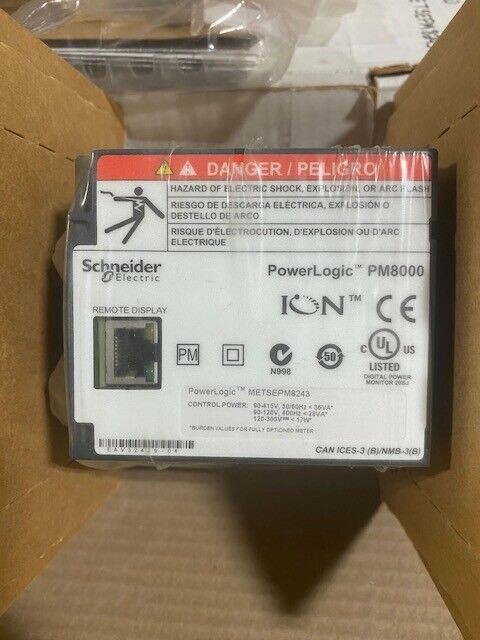

Schneider Electric PowerLogic PM8000

The Schneider Electric PowerLogic PM8000 METSEPM8243 Din Rail MT Meter from Schneider Electric is a high-precision multi-tariff energy metering solution designed for industrial, commercial, and utility applications. Part of the renowned PowerLogic PM8000 series, this DIN rail-mounted meter provides accurate measurement of electrical parameters, energy consumption, and power quality for medium- and low-voltage installations.

Engineered for reliable performance in demanding environments, the PM8000 METSEPM8243 offers advanced multi-tariff functionality, enabling users to monitor, record, and analyze energy usage across different time periods, helping reduce costs and improve operational efficiency. It supports precise monitoring of active, reactive, and apparent energy, along with voltage, current, frequency, and power factor, providing comprehensive insights into electrical network performance.

The meter features robust communication options, including Modbus RTU, Modbus TCP, and Ethernet connectivity, facilitating seamless integration into building management systems (BMS), SCADA, and energy monitoring platforms. Its DIN rail design ensures easy installation in control panels, while the clear display and user-friendly interface allow operators to quickly access key electrical parameters and energy data.

With built-in diagnostic functions, the PM8000 METSEPM8243 can detect power anomalies, network imbalances, and other electrical disturbances, helping prevent downtime and protect critical equipment. Its durable construction ensures stable operation in industrial environments, making it a reliable choice for long-term energy monitoring and management.

schneider electric pm8000 Overall, the Schneider Electric PowerLogic PM8000 METSEPM8243 Din Rail MT Meter provides accurate, real-time energy monitoring, multi-tariff management, and robust industrial performance, enabling organizations to optimize energy usage, reduce costs, and maintain efficient and reliable electrical operations.

General & Mounting

• Model / Part: PowerLogic PM8000 METSEPM8243

• Type: Din Rail Mounted Multi‑Tariff (MT) Energy Meter

• Series: PowerLogic PM8000

• Mounting: DIN Rail (35 mm)

• Display: LCD with backlight for clear readings

Measurement Capabilities

• Energy Types Measured:

  • Active Energy (kWh)

  • Reactive Energy (kVARh)

  • Apparent Energy (kVAh)

• Voltage Measurement: Single‑ and three‑phase systems

• Current Measurement: Direct or via CTs (current transformers)

• Frequency Measurement: ± accuracy compliant with standards

• Power Parameters: Active, Reactive, Apparent Power

• Power Factor: Yes (per phase & total)

Multi‑Tariff & Data

• Multi‑Tariff Functionality: Yes (programmable time‑of‑use tariffs)

• Data Logging: Time‑stamped register for energy and event data

• Demand Monitoring: Yes (configurable demand intervals)

• Event & Alarm Logs: Power quality events (sags, swells) and meter status

Electrical & Accuracy

• Rated Operational Voltage: Typically 230 / 400 V AC three‑phase

• Rated Frequency: 50 / 60 Hz

• Accuracy Class: Typically Class 1 or Class 0.5S (varies by setup)

• Input Current: With CTs (programmable ranges)

• Direct Measurement Range: Up to specified max continuous current

Communication

• Protocols Supported:

  • Modbus RTU

  • Modbus TCP/IP

  • IEC 62056‑21 (DLMS/COSEM optional)

  • Ethernet for integration with SCADA / BMS

• Ports: RS‑485 for serial comms, RJ‑45 for Ethernet

Functions & Features

• Power Quality Monitoring: Voltage and current harmonics,* supply imbalance

• Security: Password protect configuration and parameter settings

• Programmable Tariffs: Multiple TOU (Time‑of‑Use) schedules

• Remote Readings: Via supported communication protocols

• Event/Alarm Capability: Threshold breach alerts

Environmental & Physical

• Operating Temperature: Typically  –10 °C to +55 °C

• Storage Temperature: –25 °C to +70 °C

• Humidity: Up to 95 % non‑condensing

• Dimensions: Standard compact DIN rail size

• Ingress Protection: IP20 (panel enclosed)

Standards & Compliance

• Compliant with IEC/EN 62053 for energy metering

• Meets IEC/EN 61000 series for EMC / immunity

• Safety per EN 61010
