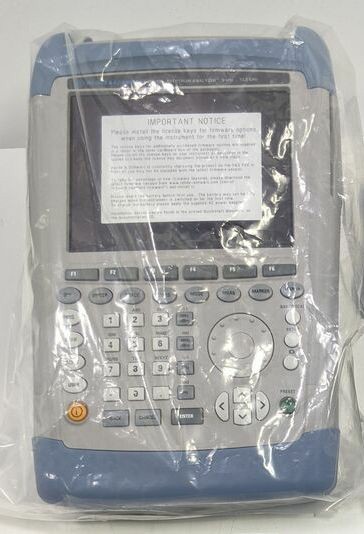

Rohde & Schwarz FSH 13.13

The Rohde & Schwarz FSH 13.13 Handheld Spectrum Analyzer is a portable solution designed for high-precision frequency spectrum measurements, offering the reliability and flexibility required by professionals in telecommunications, electronics, and RF engineering. This analyzer is ideal for both field testing and laboratory applications, providing an unmatched combination of measurement accuracy and mobility.

The FSH 13.13 supports measurements across a frequency range of 9 kHz to 3 GHz, enabling the detection of weak signals and high-frequency interference. Its high-resolution color display presents the spectrum clearly, making it easy for users to read and analyze data in real-time. The ergonomic handheld design ensures comfort and ease of use in a wide range of field conditions.

Key advanced features include:

• Weak signal and intermodulation detection for precise signal quality analysis.

• Marker and peak search modes for easy identification of critical frequency points.

• Internal storage functionality to record measurements and transfer data to a computer.

• Long-lasting battery for hours of uninterrupted field operation.

The FSH 13.13 is an ideal choice for RF technicians, network engineers, and communications professionals who require a portable yet highly accurate measurement tool. Rohde & Schwarz’s quality and precision guarantee consistent and reliable measurements, whether for routine inspections, troubleshooting, or communications system development.

Specifications:

• Model: FSH 13.13

• Type: Handheld Spectrum Analyzer

• Manufacturer: Rohde & Schwarz

• Frequency Range: 9 kHz – 3 GHz

• Resolution Bandwidth (RBW): 10 Hz – 1 MHz

• Amplitude Range: –120 dBm to +20 dBm (typical)

• Display: Color LCD, high-resolution

• Dynamic Range: >90 dB (typical)

• Phase Noise: –110 dBc/Hz at 10 kHz offset (typical)

• Input Impedance: 50 Ω

• Detectors: Peak, RMS, Average, and Quasi-Peak

Performance Features:

• Signal Analysis: Intermodulation, carrier-to-noise ratio, signal strength

• Peak Search & Marker Functions: Yes, multiple markers and automatic peak detection

• Data Storage: Internal memory for measurement data and screenshots; USB transfer capability

• Measurement Functions: Spectrum measurement, frequency measurement, power level measurement

• Triggering: Free-run and external triggering options

Physical and Environmental:

• Weight: Approx. 1.6 kg (with battery)

• Dimensions: 230 mm × 110 mm × 80 mm

• Battery: Rechargeable, up to 4–6 hours of continuous operation

• Operating Temperature: 0 °C – 50 °C

• Storage Temperature: –20 °C – 60 °C

• Humidity: Up to 95% non-condensing

Connectivity:

• Interfaces: USB, LAN (optional), GPIB (optional)

• Software Compatibility: Compatible with Rohde & Schwarz measurement software for data analysis

Accessories (Typically Included):

• Handheld Spectrum Analyzer FSH 13.13

• Rechargeable battery pack

• AC adapter / charger

• RF input cable / test leads

• Carrying case

• User manual
