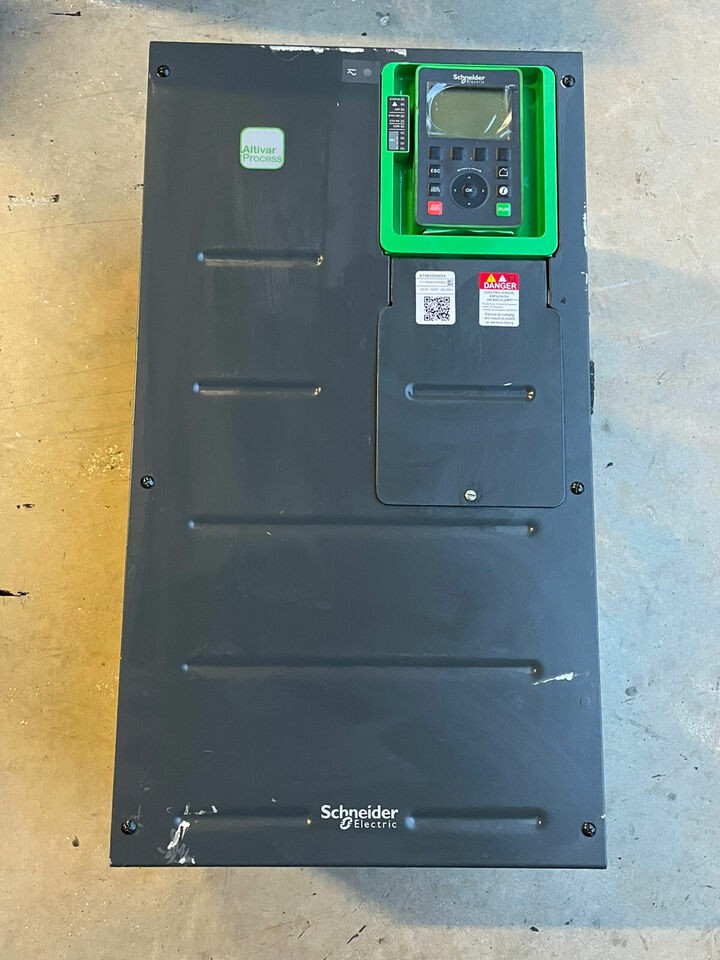

Schneider Electric ATV630D90Y6 100HP AC VS Drive

The Schneider Electric ATV630D90Y6, part of the Altivar 630 series, is a high-performance AC variable speed (VS) drive designed for demanding industrial applications. With a 100HP (75kW) rating, this drive provides precise motor control, energy efficiency, and reliable performance, making it ideal for pumps, fans, compressors, conveyors, and other heavy-duty machinery.

Core Functionality

The ATV630D90Y6 enables smooth and precise control of AC motors through:

• Adjustable speed and torque to match application requirements.

• Energy-efficient operation by optimizing motor load and reducing power consumption.

• Stable and reliable performance under dynamic load conditions, ensuring consistent process quality.

This drive is designed to support industrial processes that demand both accuracy and efficiency.

Technical Highlights

Key features of the ATV630D90Y6 include:

• Power Rating: 100HP (~75kW), suitable for medium-to-heavy industrial motors.

• Input Voltage: Three-phase industrial supply, typically 380–480V AC.

• Control Modes: Supports V/f control, vector control, and closed-loop torque control for versatile motor applications.

• Communication: Compatible with Modbus, CANopen, Ethernet/IP, and other industrial protocols for seamless automation integration.

• Protection Features: Includes overcurrent, overvoltage, short-circuit, and thermal protections, safeguarding both the drive and connected motors.

Advanced Features

• User-Friendly Interface: LCD display and intuitive keypad for monitoring and programming.

• Programmable Logic Functions: Allows automation of complex processes directly from the drive.

• Energy Optimization: Dynamic energy-saving algorithms improve efficiency without compromising performance.

• Durability: Built for industrial environments, ensuring reliable operation under harsh conditions.

Applications

The ATV630D90Y6 is widely used in:

• Industrial Automation: Controlling conveyors, packaging machines, and assembly lines.

• HVAC & Pump Systems: Energy-efficient operation of pumps, fans, and compressors.

• Process Industries: Chemical, food & beverage, and water treatment applications requiring precise motor control.

• Heavy Machinery: Mixers, presses, and other industrial equipment requiring stable AC motor performance.

Installation & Safety Notes

• Installation should be performed by qualified technicians familiar with VS drives.

• Ensure adequate ventilation to maintain optimal performance.

• Follow Schneider Electric’s safety and wiring guidelines to avoid electrical hazards.

The Schneider Electric ATV630D90Y6 100HP AC VS Drive delivers precise motor control, energy efficiency, and reliable protection features for demanding industrial applications. Its combination of robust performance, programmable logic functions, and integration capabilities makes it an essential component in modern industrial automation and process optimization.
