Schneider Electric ION9200

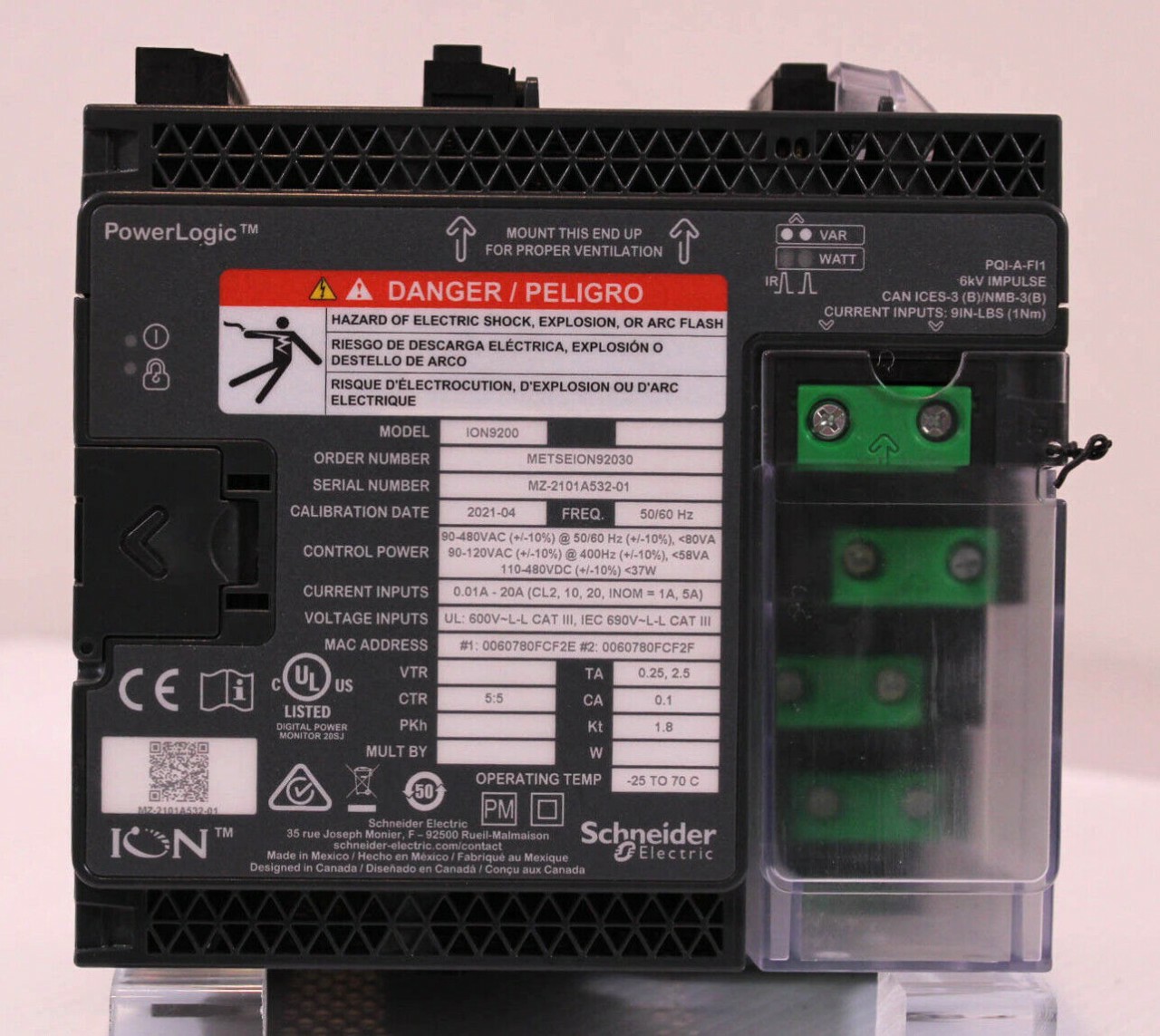

The Schneider Electric ION9200 METSEION92030 Powerlogic Power Meter is an advanced, high-performance energy metering device designed for precise monitoring and management of electrical systems in industrial, commercial, and utility environments. Engineered for reliability and accuracy, the ION9200 provides real-time insight into power quality, energy consumption, and system performance, enabling smarter decision-making and optimized energy management.

This power meter supports high-speed data acquisition, versatile communication protocols, and comprehensive measurement parameters, including voltage, current, power, energy, harmonics, and power factor. Its robust design ensures operation under demanding conditions, with a scalable platform that accommodates expanding energy management needs.

Key features include:

• Advanced energy monitoring for detailed analysis of electrical consumption and power quality.

• Real-time data acquisition with high-speed sampling for precise measurements.

• Versatile communication options including Modbus, Ethernet, and other protocols for seamless integration with building or industrial management systems.

• Scalable and configurable for industrial plants, commercial facilities, and utility applications.

• User-friendly interface with configurable display and remote monitoring capabilities.

Ideal for energy managers, engineers, and facility operators, the ION9200 METSEION92030 helps reduce operational costs, improve efficiency, and ensure reliable power delivery. With Schneider Electric Powerlogic technology, users gain actionable insights to optimize energy usage, maintain system reliability, and meet regulatory compliance.

Whether used for detailed energy audits, load analysis, or power quality monitoring, the ION9200 is a reliable, professional-grade solution for comprehensive energy management.

Specifications

General Information

• Model: ION92030

• Series: PowerLogic ION9200

• Type: Energy & Power Quality Meter (DIN mount, no display)

• Applications: Power monitoring, WAGES metering, net metering, medium & high voltage systems

Measurement & Functions

• Voltage & Current: Measures voltage, current, frequency, power factor, total and per-phase active & reactive energy

• Power & Energy: Active & reactive power (P, Q), apparent power (S), energy (+/- W.h, +/- VAR.h)

• Demand & Peak: Current demand I1…I5, peak demand power PM, QM, SM

• Power Quality:

  • Compliance with EN 50160, IEEE 519, IEC 61000‑4‑30 Class A

  • Total harmonic distortion up to 63rd (127th with software)

  • Sag & swell detection, transient capture (20 μs)

  • Waveform capture & half-cycle RMS acquisition

Accuracy & Class

• Active energy accuracy: Class 0.1S per IEC 62053‑22

• Reactive energy accuracy: Class 0.5S per IEC 62053‑24

• Voltage & current accuracy: Class 0.1 per IEC 61557‑12

• ANSI C12.20 compliance for active energy

Electrical Specifications

• Rated supply voltage:

  • 90…480 V AC (45–66 Hz)

  • 90…120 V AC (400 Hz)

  • 110…480 V DC

• Rated current: 1 A / 5 A

• Measurement current range: 0.01…20 A

• Measurement voltage range: 57…400 V AC (phase‑to‑neutral), 100…690 V AC (phase‑to‑phase)

• Frequency measurement: 20…450 Hz

• Sampling rate: 1024 samples per cycle

• Power consumption: ~38 VA (max 80 VA at 480 V AC)

Communication

• Protocols: Modbus RTU, Modbus TCP, DNP3, ION protocols, DNP3 TCP/IP, IEC 61850

• Ports: RS485 (removable), 2× Ethernet 10/100BASE‑TX

• Gateway: Ethernet/Serial

• Cybersecurity: Port hardening, event logs, configurable user accounts

Logging & Time Features

• Memory: 2 GB for data logs, alarms, event logs

• Data Recording: Trending, snapshot, event & alarm logs

• Time sync protocols: GPS, IRIG‑B, NTP, PTP, SNTP

Environmental & Construction Features

• Mounting: DIN rail (panel adapter optional)

• Display: None (remote/communication monitoring)

• Degree of protection: IP65 front, IP30 rear

• Operating Temperature: –25…70 °C

• Standards: ANSI C12.20, IEC 61000‑4 series, IEC 61850, IEC 62052‑11, etc.
