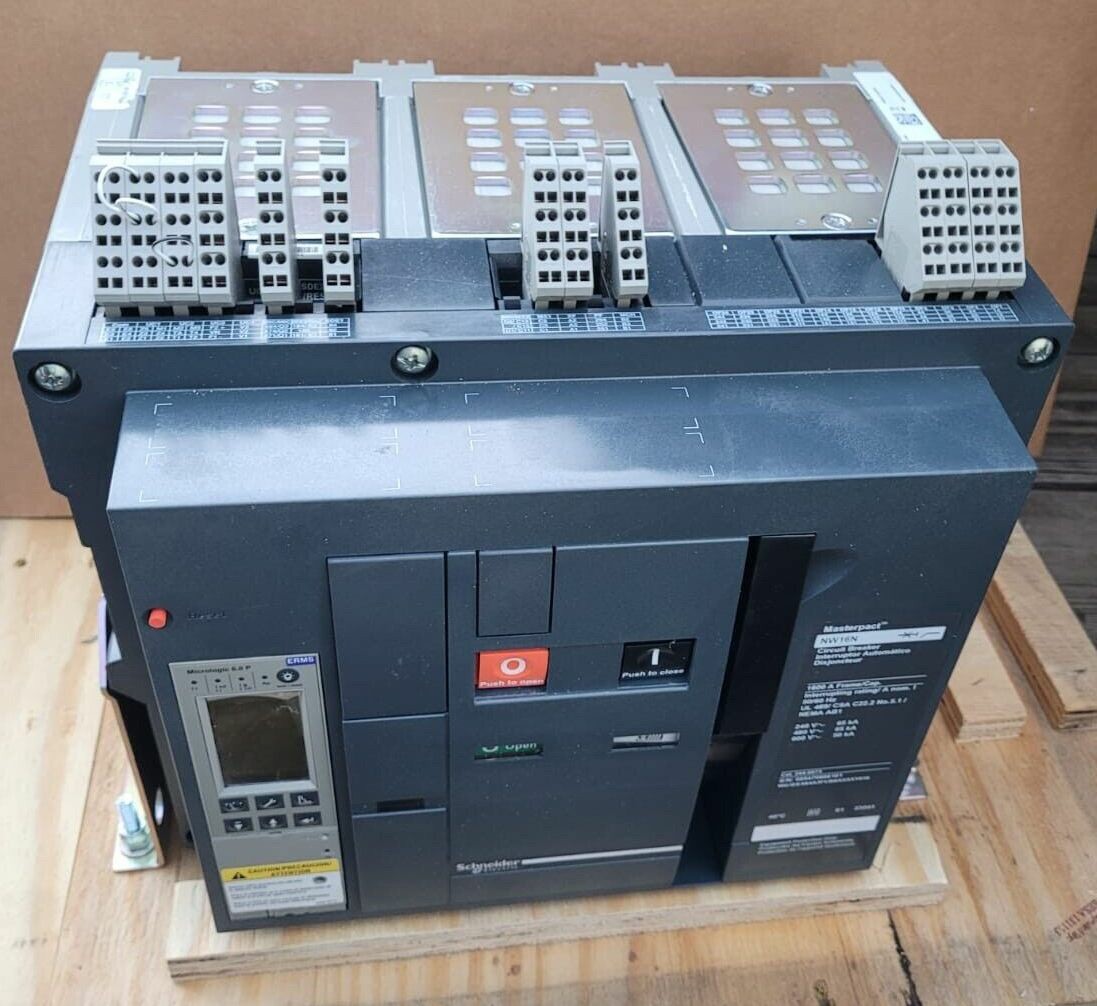

Schneider Electric Masterpact NW16 1600A

The Schneider Electric Masterpact NW16 1600A is a robust low‑voltage air circuit breaker engineered to provide high‑performance protection, precise fault interruption, and dependable switching for industrial, commercial, and utility power distribution systems. Part of the respected Masterpact series from Schneider Electric, this breaker combines advanced protection technology with rugged mechanical design to ensure safety, continuity, and efficient operation in demanding electrical environments.

With a rated current of 1600 amperes, the Masterpact NW16 is ideal for main and feeder circuit protection in large switchgear assemblies, distribution panels, manufacturing facilities, data centers, and infrastructure projects where reliable power distribution and fault clearing are essential. Its high interrupting capability enables rapid and effective clearing of overloads, short circuits, and other electrical faults, helping safeguard critical equipment and maintain system stability.

The breaker incorporates an advanced electronic trip unit that delivers configurable protection functions including long‑time, short‑time, instantaneous, and optional ground‑fault elements. These adjustable settings allow engineers to fine‑tune protection characteristics for optimal coordination with upstream and downstream devices, enhancing selectivity, minimizing nuisance trips, and improving overall electrical safety.

Built with a durable contact system, efficient arc‑interruption technology, and a sturdy operating mechanism, the Masterpact NW16 delivers consistent performance even under frequent switching and heavy load conditions. Its modular design supports easy installation, inspection, and maintenance, helping reduce downtime and lifecycle costs in mission‑critical applications.

Optional accessories such as auxiliary contacts, shunt trips, undervoltage releases, and communication modules enable integration with advanced power monitoring and automation systems, supporting real‑time diagnostics and enhanced control. The breaker’s versatile configuration and accessory options make it suitable for modern intelligent power distribution environments.

Engineered to meet stringent international safety and performance standards, the Schneider Electric Masterpact NW16 1600A offers a balanced combination of protection intelligence, mechanical reliability, and flexible configurability — making it a trusted solution for electrical systems where operational reliability and safety are top priorities.

Schneider Electric Masterpact NW16 H1 3 Pole 1600A Air Circuit Breaker, Manual or motorized operating mechanism, Line and load terminals, Trip unit (Micrologic or equivalent), Racking mechanism (if applicable), Control wiring harness, Mounting hardware, User manual and installation guide, Test or calibration certificate (if available), Safety and compliance documentation, Manufacturer warranty card, Original Schneider Electric packaging
