Description

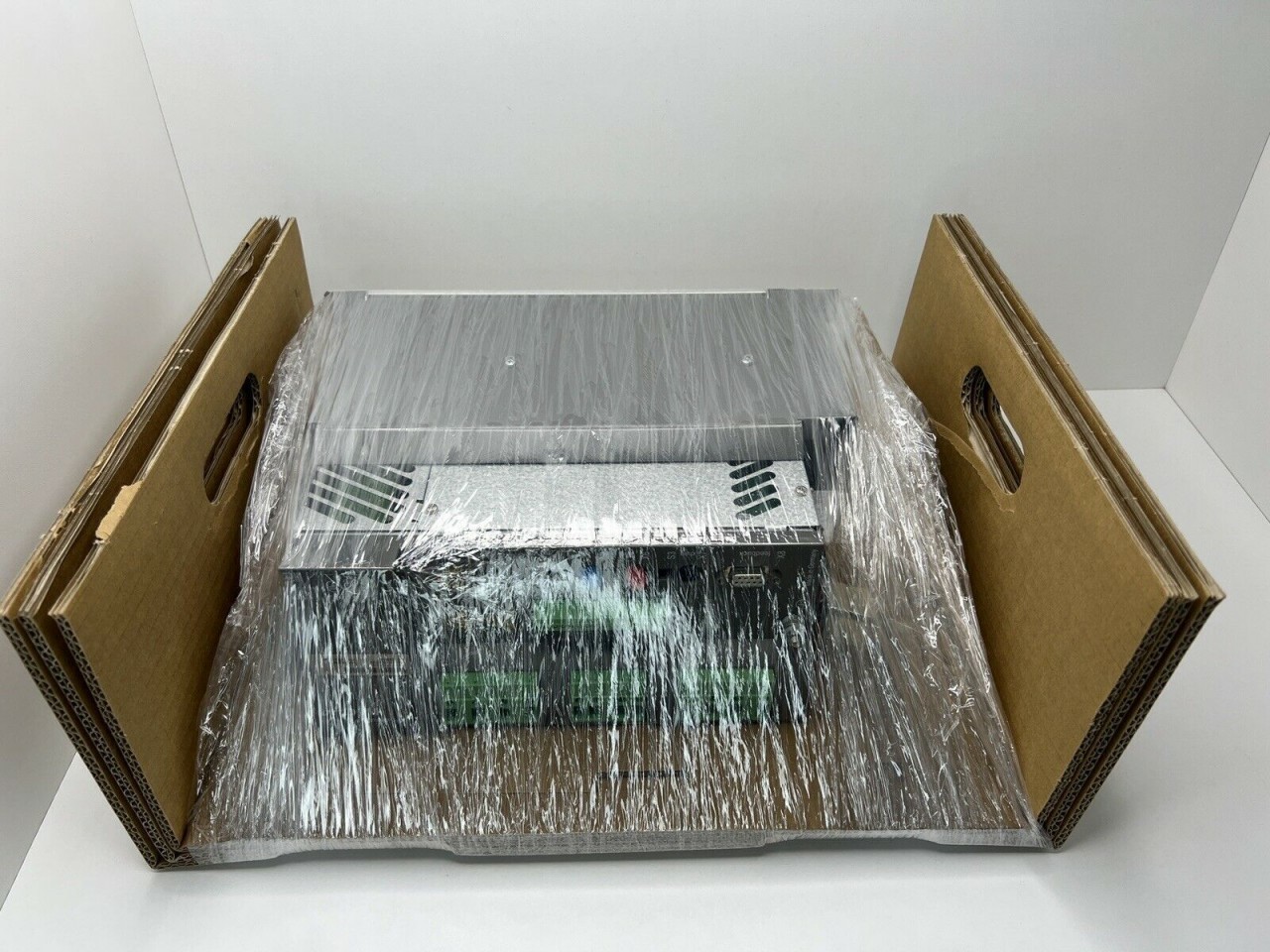

Schneider Electric VDM01D22AQ00

The Schneider Electric VDM01D22AQ00 is a high-performance servo drive designed for precise motor control in demanding industrial automation applications. As part of Schneider Electric Varan Motion series, this drive provides accurate positioning, speed, and torque control, enabling seamless operation of robotics, conveyors, CNC machines, and other automated systems.

Equipped with advanced control algorithms, the VDM01D22AQ00 ensures smooth and stable motion even under variable loads, reducing wear on mechanical components and improving overall system efficiency. Its compact design allows easy integration into existing automation setups, while robust protection features safeguard the drive and connected motors from overloads, short circuits, and thermal stress.

With Schneider Electric proven reliability and engineering excellence, the VDM01D22AQ00 Servo Drive offers industrial users a dependable solution to optimize machine performance, minimize downtime, and achieve energy-efficient operation. This drive is ideal for applications requiring high precision, dynamic response, and consistent output quality.

Specifications

Model: VDM01D22AQ00
Series: PacDrive MC‑4/11/22/400 Servo Drive
Product Type: Three-phase servo drive for precise industrial control

Electrical

• Input Voltage: 3-phase AC 380–480 V, 50/60 Hz

• Control Voltage: 24 V DC (logic/control)

• Output Current: 22 A continuous

• Output Voltage: 0–480 V AC

• Output Frequency Range: 0–600 Hz

• Power Output: Designed for medium to high servo applications

Key Features

• Compatible with PacDrive MC‑4 platform for multi-axis automation systems

• Designed for precise speed, position, and torque control

• Stable under dynamic loads and varying operating conditions

• Compact construction for panel mounting

Typical Applications

• Robotics and material handling systems

• Packaging machines and conveyors

• CNC and machine tools

• Automated assembly lines

• Multi-axis motion control systems

Physical & Environmental

• Cooling: Internal fan

• Global Compatibility: Supports 50/60 Hz frequency

• Integration: Designed for seamless integration with other Schneider Electric control systems
