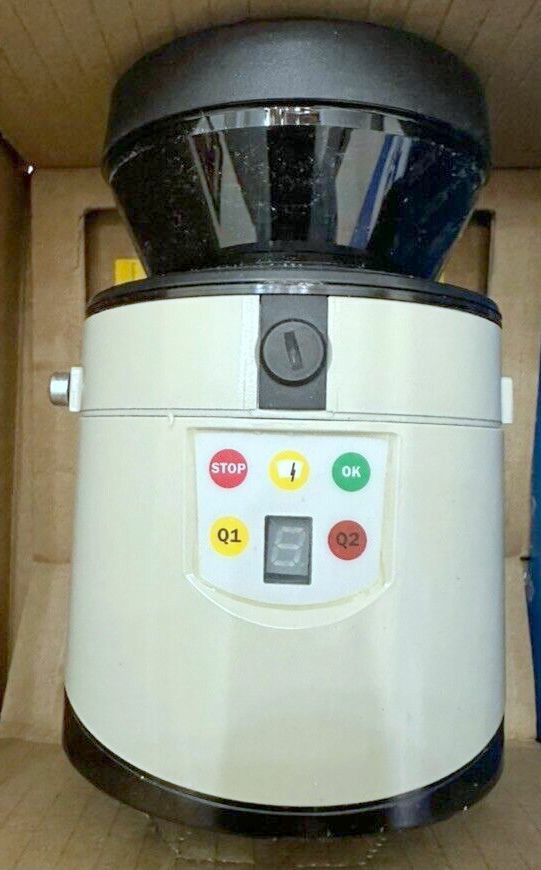

SICK LMS111-10100 Laser Finder Safety System

The SICK LMS111-10100 Laser Finder Safety System from SICK AG is a compact and high-precision 2D laser scanner designed for reliable area monitoring, object detection, and safety-related applications in industrial environments. Engineered with advanced LiDAR technology, the LMS111-10100 delivers accurate distance measurement and real-time scanning performance, making it an ideal solution for factory automation, robotics, AGVs (Automated Guided Vehicles), and security monitoring systems.

The LMS111-10100 operates using time-of-flight laser measurement technology, providing precise distance data across a wide scanning field. With a high angular resolution and fast scan rate, it can accurately detect objects, obstacles, and movement within defined protection zones. This enables manufacturers to enhance operational safety, prevent collisions, and improve workflow efficiency.

Designed for industrial durability, the LMS111-10100 features a robust housing suitable for demanding environments. Its compact form factor allows easy integration into control panels, mobile robots, or fixed installations. The scanner supports flexible configuration of monitoring fields, enabling users to define warning and protective zones according to specific application requirements.

In automation systems, the LMS111-10100 plays a critical role in navigation and positioning. It provides reliable environmental mapping data for AGVs and robotic platforms, ensuring smooth and collision-free movement. In stationary installations, it can be used for perimeter protection, access control monitoring, and intrusion detection.

The device offers Ethernet-based communication for fast and stable data transmission to PLCs, industrial PCs, and control systems. Its user-friendly configuration software simplifies setup, parameter adjustment, and diagnostics, reducing commissioning time and maintenance effort.

With low power consumption and consistent long-term performance, the SICK LMS111-10100 ensures operational reliability while supporting modern Industry 4.0 environments. Whether used for safety monitoring, object detection, or navigation support, this laser scanner delivers precision, stability, and trusted German engineering quality.

Overall, the SICK LMS111-10100 is a dependable and versatile laser scanning solution that enhances industrial safety, productivity, and automation performance.

• High-Precision 2D Laser Scanning – Accurate distance measurement using time-of-flight technology.

• Wide Scanning Angle – Provides broad area coverage for monitoring and detection applications.

• Fast Scan Rate – Real-time data acquisition for dynamic industrial environments.

• Adjustable Monitoring Fields – Configurable warning and protection zones.

• Reliable Object & Obstacle Detection – Ideal for collision avoidance and safety applications.

• Compact & Robust Design – Suitable for industrial environments and mobile platforms.

• Ethernet Communication Interface – Easy integration with PLCs, industrial PCs, and automation systems.

• Low Power Consumption – Energy-efficient operation for continuous use.

• Easy Configuration & Diagnostics – User-friendly setup software for quick commissioning.

• Versatile Application Support – Suitable for AGVs, robotics, area monitoring, and factory automation.

• Enhanced Workplace Safety – Improves personnel and equipment protection through reliable area monitoring and obstacle detection.

• Reduced Collision Risk – Enables accurate object detection for AGVs, robots, and automated systems, minimizing accidents and downtime.

• Improved Operational Efficiency – Real-time scanning supports smoother workflow and optimized machine movement.

• Flexible Integration – Easy to integrate with PLCs, industrial PCs, and automation networks via Ethernet communication.

• Customizable Protection Zones – Adjustable monitoring fields allow adaptation to various industrial layouts and safety requirements.

• Reliable Performance in Harsh Environments – Robust industrial design ensures stable operation in demanding conditions.

• Lower Maintenance Costs – Durable construction and diagnostic capabilities reduce unexpected failures and service time.

• Supports Industry 4.0 Applications – Provides precise environmental data for smart automation and advanced control systems.

• Energy Efficient Operation – Low power consumption supports continuous 24/7 industrial use.

• Long-Term Investment Value – Trusted engineering quality ensures dependable performance over time.

Optical & Scanning

• Laser Type: Infrared (905 nm)

• Laser Safety Class: Class 1 (eye-safe)

• Scanning Angle: 270° horizontal coverage

• Scanning Frequency: 25 Hz or 50 Hz selectable

• Angular Resolution: 0.25° or 0.5° selectable

• Working Range: 0.5 m to 20 m

• Range @ 10 % reflectivity: approx. 18 m

• Number of Evaluated Echoes: 2

• Fog Correction: Yes for improved performance in low visibility

Electrical & Interface

• Supply Voltage: 10.8 – 30 V DC

• Power Consumption: ~8 W typical (35 W with heating)

• Connection: 1 × M12 round connector

• Communication Interfaces: Ethernet (TCP/IP), RS-232 serial, CAN, Digital I/O options

Mechanical & Environmental

• Protection Rating: IP67 (dust and water resistant)

• Housing Color: Gray (RAL 7032)

• Dimensions: ~105 mm × 102 mm × 162 mm

• Weight: ~1.1 kg

• Operating Temperature: -30 °C to +50 °C

• Storage Temperature: -30 °C to +70 °C

• Response Time: ≥ 20 ms

• Detection Accuracy: Typical systematic error ~±30 mm; statistical error ~12 mm

Performance & Features

• Configurable Safety/Monitoring Fields: Up to 10 field sets

• Simultaneous Evaluation Cases: 10

• Object Detection: Nearly any object shape within scanning range

• Indicators: 7-segment display + status and contamination LEDs

• EMC & Mechanical Standards: Robust against vibration, shock, and electromagnetic interference
