Siemens Sinamics 6SL3225

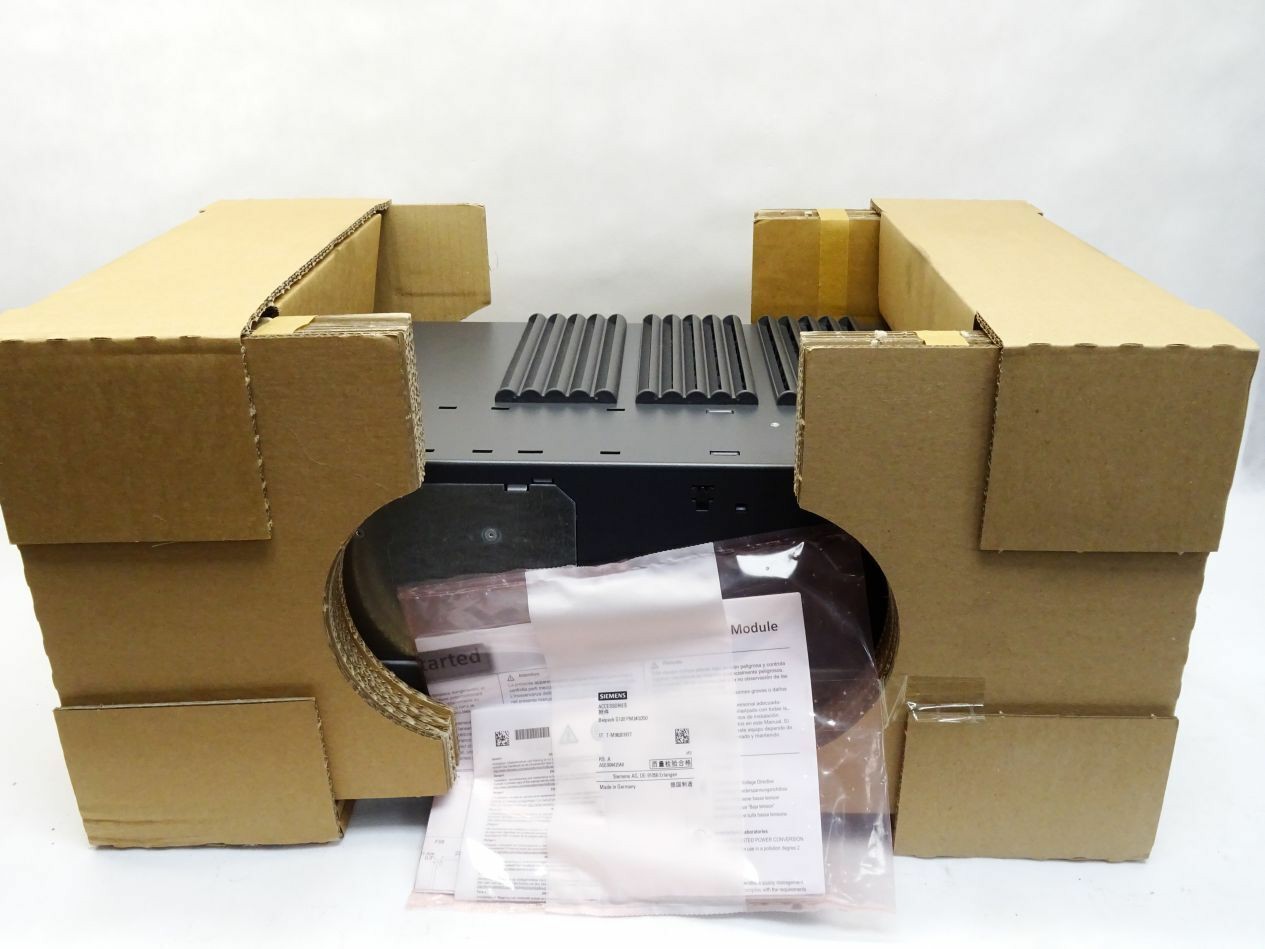

The Siemens Sinamics 6SL3225 0BE32 2AA0 Power Module is a high-performance industrial drive component designed to deliver reliable power and optimal efficiency for a wide range of automation and drive applications. As part of the Sinamics family, this power module ensures smooth operation, precise motor control, and long-term durability in demanding industrial environments.

Featuring advanced power electronics and robust thermal management, the 6SL3225 module supports high-current loads while minimizing energy losses, making it ideal for manufacturing systems, conveyors, pumps, and other machinery that require consistent and efficient power delivery. Its compact design simplifies integration into existing Sinamics drive systems, while its high reliability reduces downtime and maintenance costs.

With Siemens proven quality and engineering, the 6SL3225 0BE32 2AA0 is engineered to meet the rigorous demands of modern industrial automation, providing safe, stable, and energy-efficient operation. Whether upgrading existing drives or designing new systems, this power module is a dependable solution for maximizing productivity and operational performance.

Specifications

Model: 6SL3225‑0BE32‑2AA0
Series: SINAMICS G120 Power Module (PM250)
Product Type: Industrial Drive Power Module

Electrical

• Input Voltage: 3‑phase AC 380–480 V ±10 %

• Operating Frequency: 47–63 Hz

• Rated Power (High Overload): 22 kW

• Rated Power (Light Overload): 30 kW

• Maximum Output Current: ~90 A

• Pulse Frequency: ~4 kHz

• Efficiency: >97 %

Overload Capability

High Overload (HO):

• 200 % for 3 seconds

• 150 % for 57 seconds

• 100 % for 240 seconds (up to 50 °C)

Light Overload (LO):

• 150 % for 3 seconds

• 110 % for 57 seconds

• 100 % for 240 seconds (up to 40 °C)

Features

• Integrated Class A EMC filter

• Regenerative energy capability for dynamic loads

• Requires separate control unit and BOP

Dimensions & Protection

• Dimensions (HxWxD): 512 × 275 × 204 mm

• Weight: ~16 kg

• Protection Class: IP20 (for panel installation)

Environmental

• Operating Temperature: 0 °C to +50 °C

• Suitable for standard industrial environments
