Solmetric PVA 1500S PV Analyzer Complete Kit

The Solmetric PVA 1500S is a professional-grade PV (photovoltaic) analyzer designed for accurate, reliable, and comprehensive testing of solar panels and photovoltaic systems. This complete kit provides everything technicians and engineers need to measure, analyze, and optimize PV performance in the field.

Equipped with advanced features, the PVA 1500S allows users to quickly measure I-V curves, detect underperforming modules, evaluate system efficiency, and verify manufacturer specifications. Its intuitive interface, high-resolution display, and robust design make it ideal for both on-site diagnostics and system commissioning.

The complete kit includes all essential components such as current/voltage probes, connectors, and a carrying case, providing a ready-to-use solution for solar installation companies, service providers, and field technicians. With the Solmetric PVA 1500S, users can ensure optimal system performance, reduce downtime, and identify potential issues before they impact energy production.

Key Features & Benefits:

• Measures complete I-V curves for PV modules and strings

• Detects weak or underperforming panels quickly

• Verifies manufacturer and system specifications

• High-resolution display with intuitive navigation

• Durable and portable for field use

• Complete kit includes all necessary probes, connectors, and carrying case

Applications:

• Solar panel testing and commissioning

• Routine PV system maintenance and performance monitoring

• Troubleshooting underperforming solar installations

• Verification of PV system efficiency and output

Technical Specifications

General

• Model: PVA 1500S

• Type: Handheld PV (photovoltaic) analyzer

• Application: Testing and analyzing solar panels and PV systems

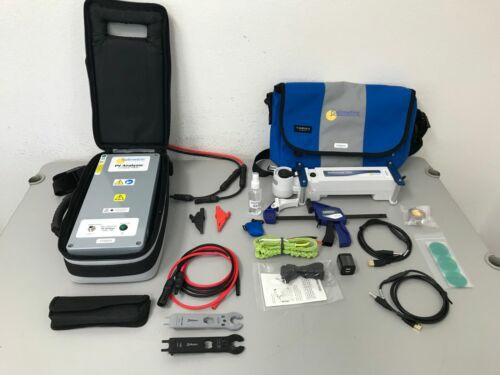

• Complete Kit Includes: Analyzer unit, current and voltage probes, all necessary connectors, carrying case

Electrical Measurement

• Maximum Voltage: 1,500 V DC

• Maximum Current: 20 A (module) / 40 A (string)

• I-V Curve Measurement: Yes, full curve tracing

• Accuracy: ±0.5% of reading

• Resolution: High-resolution voltage and current readings

Display & Interface

• Screen: High-resolution, full-color display

• User Interface: Intuitive menu system with on-screen prompts

• Data Logging: Internal memory for storing test results

• Connectivity: USB / optional Bluetooth for data transfer

Physical & Environmental

• Dimensions: ~260 × 140 × 90 mm (unit only)

• Weight: ~1.2 kg (unit only)

• Operating Temperature: 0°C to 45°C

• Storage Temperature: -20°C to 60°C

• Durability: Rugged, portable design suitable for field use

Applications

• Commissioning new PV systems

• Routine performance monitoring and preventive maintenance

• Troubleshooting underperforming modules or strings

• Verifying system output and efficiency
