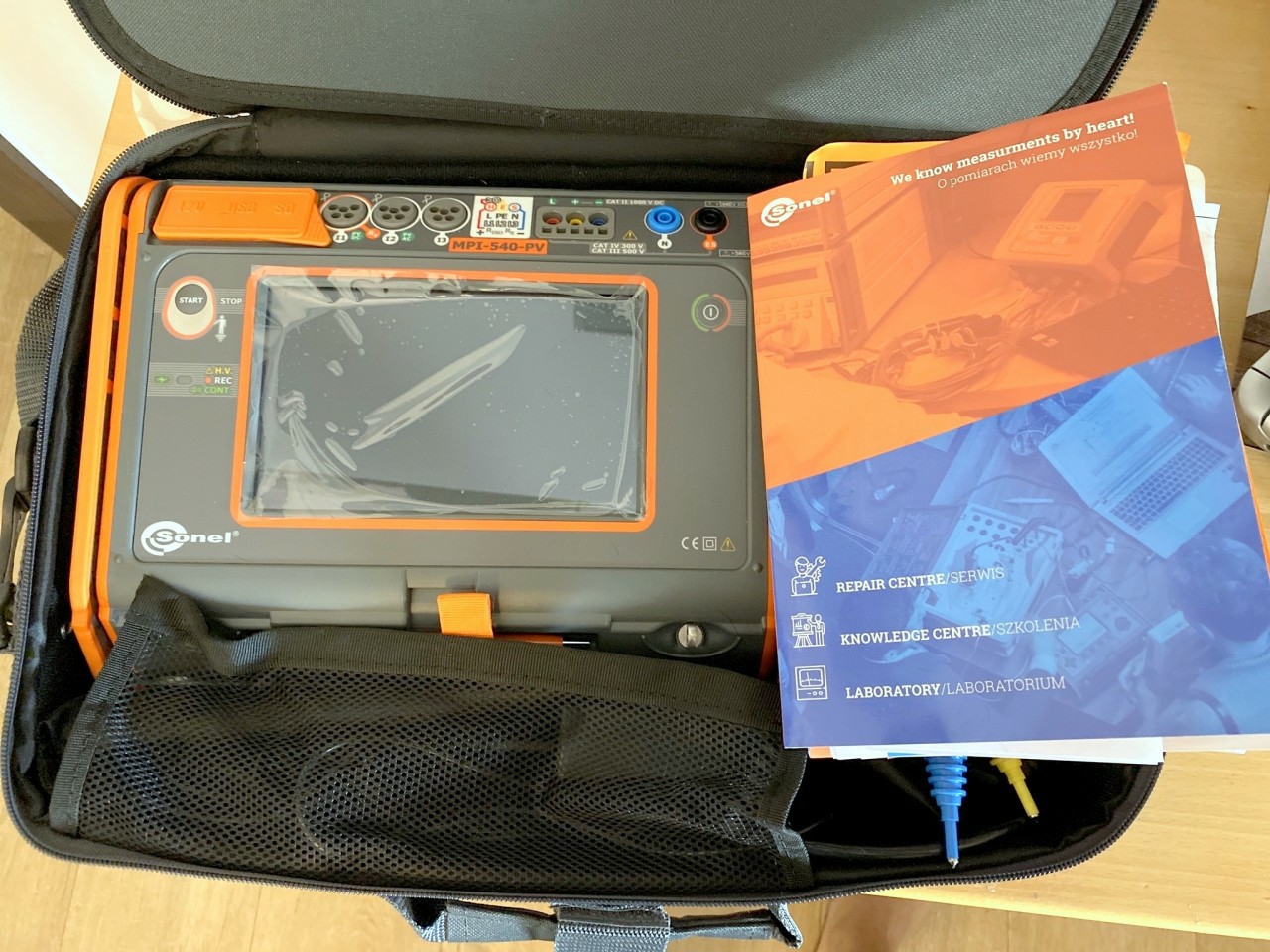

Sonel MPI 540

The Sonel MPI 540 is a professional-grade PV solar installation tester designed for accurate and reliable testing of photovoltaic (PV) systems. Ideal for solar installers, maintenance teams, and inspection professionals, this versatile tester ensures proper installation, safety, and performance verification of solar panels and arrays.

Equipped with advanced measurement capabilities, the MPI 540 allows users to assess key parameters such as insulation resistance, voltage, current, continuity, and earth resistance. It also supports comprehensive testing of DC and AC circuits in PV systems, helping detect faults, prevent energy loss, and ensure compliance with international safety standards.

Key features:

• Accurate testing of insulation resistance, continuity, and earth resistance for PV installations

• Measurement of DC voltage and current for solar panels and arrays

• Detection of wiring faults, short circuits, and connection errors

• Portable and rugged design for field use, with a clear digital display and intuitive interface

• Compliance with IEC/EN standards for photovoltaic systems and electrical safety

• Optional data logging and reporting functionality for professional documentation

Whether used for new solar installations, maintenance inspections, or troubleshooting, the Sonel MPI 540 provides fast, precise, and reliable measurements, helping solar professionals ensure system efficiency, safety, and longevity.

Specifications

1. Electrical Measurement Capabilities

• Insulation Resistance Measurement: 0.01 MΩ – 2000 MΩ

• Test Voltages: 50 V, 100 V, 250 V, 500 V, 1000 V DC

• Continuity Measurement: 0.01 Ω – 200 Ω

• Earth Resistance Measurement: 0.01 Ω – 2000 Ω

• DC Voltage Measurement: 0 – 1000 V DC

• DC Current Measurement: 0 – 10 A

• AC Voltage/Current (optional modules): 0 – 1000 V / 0 – 10 A

2. Measurement Functions

• PV string testing (series/parallel arrays)

• Fault detection for wiring errors and short circuits

• Verification of protective grounding and earthing

• Automatic and manual test modes

• Data logging and result storage (optional, via software)

3. Display & Interface

• Large digital backlit display for clear readings

• Intuitive user interface with menu navigation

• LED indicators for status, errors, and safety alerts

• Built-in memory for test results (optional)

4. Safety & Compliance

• Overvoltage and overload protection

• Test category: CAT IV 600 V / CAT III 1000 V

• Compliant with IEC 61557, IEC 62446, and EN standards for PV systems

• Insulated and rugged housing for field safety

5. Physical & Environmental

• Dimensions: 280 × 160 × 95 mm

• Weight: ~2.5 kg

• Operating Temperature: -10°C to +50°C

• Storage Temperature: -20°C to +70°C

• Humidity: 0 – 95% non-condensing

• Housing: Rugged, impact-resistant, portable design

6. Accessories

• Test leads and clamps for DC/AC measurement

• Earth spike and auxiliary probes

• Carrying case for portability

• User manual and calibration certificate

• Optional software for data analysis and reporting
