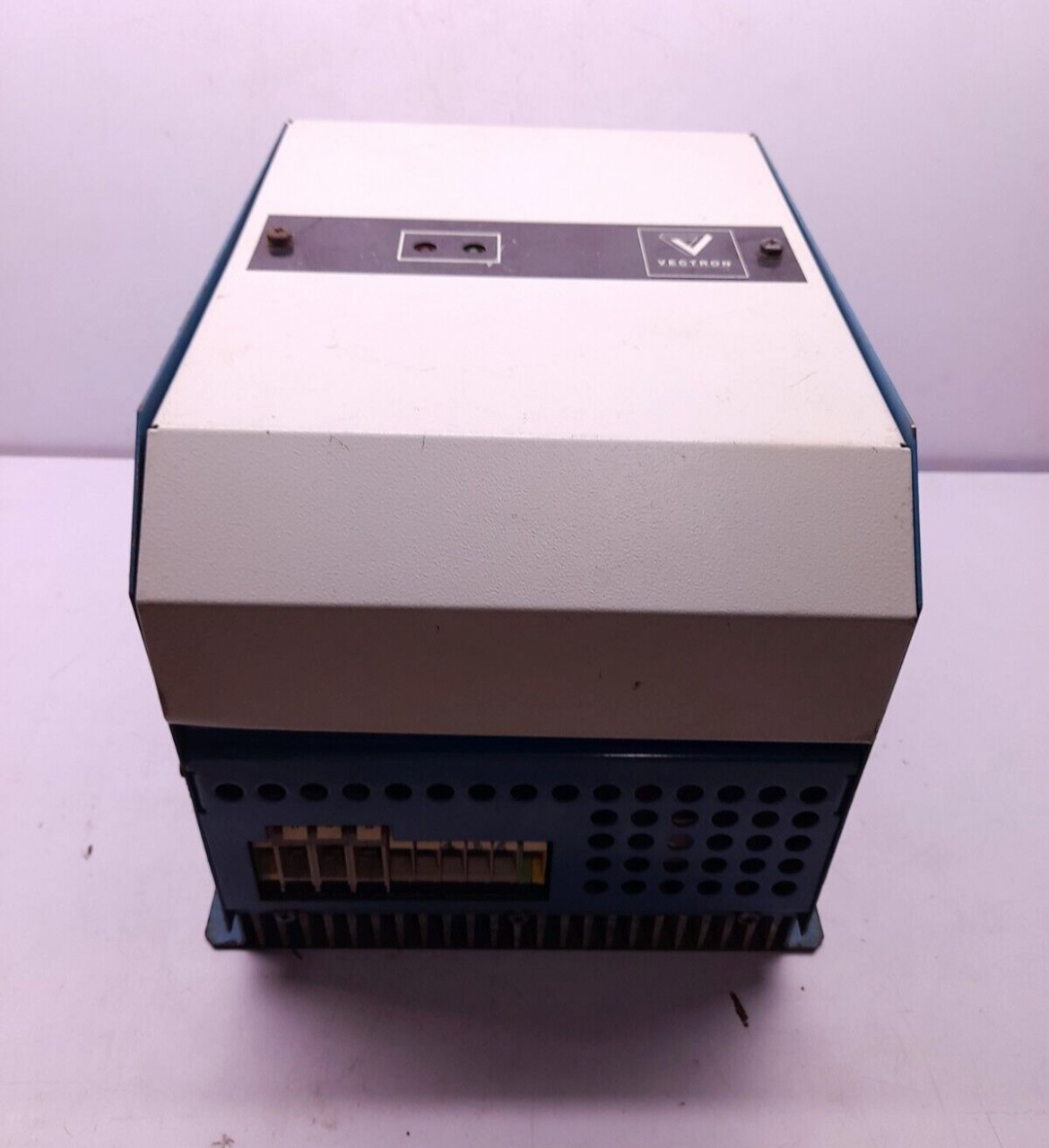

Vectron Elektronik VC 400‑045 Frequency Inverter

The Vectron Elektronik VC 400‑045 is a high-performance industrial frequency inverter designed to provide reliable speed and torque control for three-phase electric motors in demanding automation and drive applications. Part of the VCB 400 series, this model delivers 22 kW (≈ 30 HP) power output and supports 3-phase systems at 400 V (up to 480 V) with a rated current suitable for medium-power motor drives. It is designed for installation in electrical cabinets and industrial environments where precise motor control, energy efficiency, and smooth operation are required.

Features

Reliable Motor Control

• Provides variable frequency drive (VFD) control for 3-phase AC motors, enabling adjustable speed and acceleration/deceleration profiles for process optimization.

• Ensures smooth motor start/stop and consistent performance across varying load conditions.

Industrial-Grade Design

• Built for cabinet installation with proper ventilation to manage heat dissipation.

• Designed for continuous operation in industrial environments under specified ambient conditions.

• Requires qualified installation according to electrical safety standards.

Electrical & Thermal Performance

• Operates on a 400 V AC supply (max. 480 V) at 50–60 Hz, with a rated output current of approximately 45 A.

• Delivers nominal power around 22 kW, suitable for medium-duty industrial motor applications.

• Includes provisions for proper fuse sizing and cable selection to ensure safety and minimize electrical losses.

Installation & Safety

• Must be mounted vertically with adequate clearance for heat dissipation.

• Proper shielding and grounding practices are required to reduce interference and ensure electromagnetic compatibility.

• Only qualified technicians should perform installation and commissioning due to the risk of electrical shock.

Applications

The Vectron VC 400‑045 is ideal for:

• Industrial drive systems requiring variable speed control of AC motors

• Conveyor systems, pumps, fans, compressors, and production lines

• Automation and process control environments where efficiency and precise motor regulation are critical

General Specifications

Voltage & Power

• Input Voltage: 3 × 400 V AC (‑20% … +10%), up to 480 V AC

• Input Frequency: 50 – 60 Hz

• Rated Output Current: approximately 45 A at 400 V AC

• Max. DC Link Voltage: 540 Vdc (max 650 V)

• Power Output: ~22 kW / ~30 HP, suitable for medium-power motors

Performance & Control

• Output Frequency: 0 – 400 Hz (depending on switching settings)

• Switching Frequency: 1 – 8 kHz adjustable according to application needs

• Power Factor (cosφ): ~1 (fundamental)

• Efficiency: up to ~98% depending on switching settings

• AC motor control using standard V/f profiles for smooth speed and torque performance

Connectivity & Protection

• Protection Class: IP20, suitable for industrial panel installation

• Protection Features: overcurrent, overvoltage, cable and installation safety protection

• Brake Chopper: available on certain models for external braking resistor control (optional)

• Line & DC Link Choke: external chokes may be required for stability and EMI reduction

Environment & Installation

• Protection Class: IP20

• Operating Temperature: 0 … +40 °C (with proper ventilation)

• Storage Temperature: ‑25 … +55 °C

• Relative Humidity: 15 … 85% without condensation

• Installation: vertical mounting in control cabinets with free airflow for heat dissipation

• Power Derating: required above 40 °C and at altitudes above 1000 m

Mechanical Features

• Mounting Distances: adequate clearance around the inverter is required for proper ventilation

• Terminal Torque: connection terminals have specified tightening torque depending on connector type
