Description

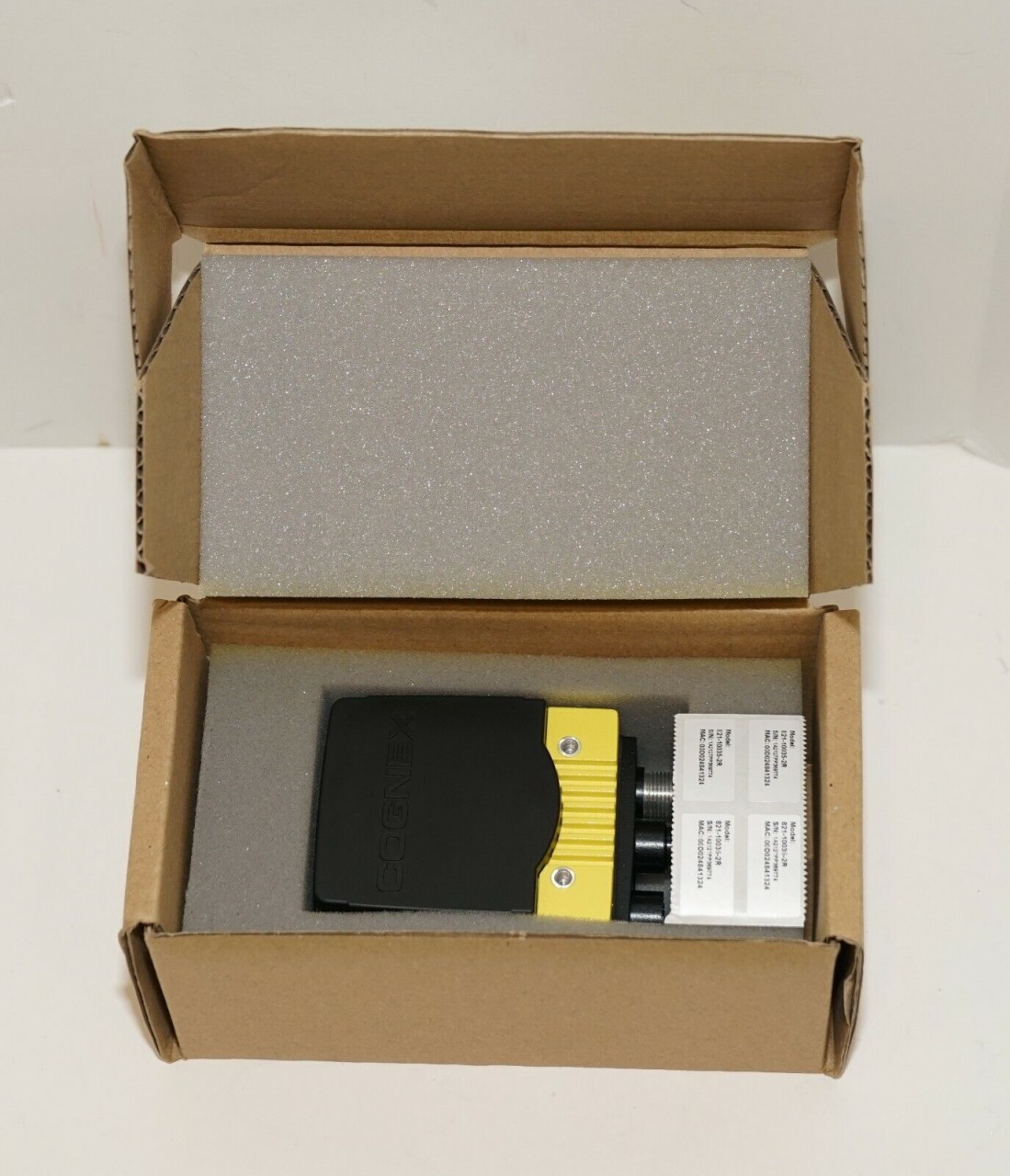

Cognex InSight 7000 IS7802M

The Cognex InSight 7000 IS7802M Vision Camera Sensor is a high-performance industrial vision system designed for fast, accurate inspection and measurement in automated production environments. Engineered with advanced image processing technology, the InSight 7000 series delivers reliable defect detection, part verification, and quality control, even in high-speed manufacturing applications.

With its compact design and flexible mounting options, the IS7802M integrates seamlessly into production lines, enabling manufacturers to optimize throughput without sacrificing precision. The sensor’s robust software tools allow for easy configuration, pattern recognition, and vision-based measurement tasks, making it suitable for a wide range of industries including automotive, electronics, pharmaceuticals, and consumer goods.

Key Features:

• High-Speed Vision Processing: Rapid image acquisition and analysis for real-time inspection.

• Advanced Defect Detection: Identifies scratches, misalignments, missing components, and other defects with high reliability.

• Flexible Mounting & Compact Design: Easily integrates into existing production lines with minimal footprint.

• User-Friendly Software Tools: InSight Explorer software enables intuitive setup, programming, and deployment.

• Pattern Recognition & Measurement: Supports complex part alignment, counting, and dimensional inspection.

• Durable Industrial Construction: Designed to withstand challenging factory environments with consistent performance.

The Cognex InSight 7000 IS7802M provides manufacturers with a powerful solution for automated visual inspection, ensuring product quality, reducing defects, and increasing operational efficiency.

Specifications

System Type:

• 2D vision built-in controller, industrial vision camera system.

Sensor & Imaging:

• Image sensor: CMOS with global shutter.

• Image type: Monochrome (black and white).

• Resolution: 1600 × 1200 pixels (1.9 MP).

• Frame rate: Up to 53 fps in monochrome mode.

Lens & Optics:

• Lens type: C-Mount or S-Mount (depending on lens ordered).

Memory & Processing:

• Program/Job memory: 7.2 GB on-board storage.

• RAM: 512 MB SDRAM for image processing.

Interface & Communication:

• Digital I/O: 3 inputs, 4 outputs (NPN/PNP).

• Communication: Serial, Ethernet.

Voltage & Power:

• Power supply voltage: 24 VDC.

Additional Features:

• LED indicators: System status and activity.

• Job storage: SD card slot available for program/data storage.

Operating Environment:

• Standard industrial operating temperature: 0 °C to +50 °C.

Applications:

• Assembly inspection and verification

• Code reading, OCR

• Defect detection and dimensional measurement

• Presence/absence checking of components

The cognex 7802 is a high-resolution monochrome industrial vision sensor with advanced processing capabilities, ideal for quality testing, component inspection, and automated manufacturing applications requiring high accuracy and fast inspection speed.
